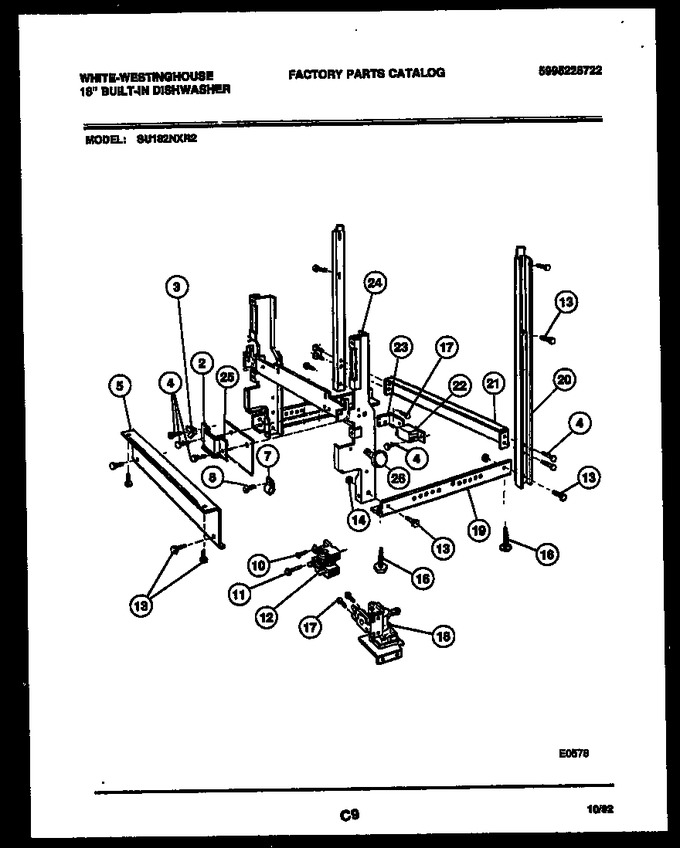

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5300806723		Wire Clamp		Appelez-nous	-
3	5300807213		Grounding Terminal		Appelez-nous	-
4	154419403		Screw 8 X 3/8``   (Replaces: 5300808658)				$ 13.10
5	5300807559		Toeplate				$ 31.76
7	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
8	5300807501		Screw-8 X 1/2``		Appelez-nous	-
10	3018140		Screw-8-32 X 1/4``		Appelez-nous	-
11	5300804672		Screw-8-32 X 1 1/4``		Appelez-nous	-
12	5300805255		Motor Relay		Appelez-nous	-
13	5300807001		Screw 1/4-20 X 1/2``		Appelez-nous	-
14	5300804619		Nut		Appelez-nous	-
16	5300809422		Leveler		Appelez-nous	-
17	5300807004		Screw 10b X 1/2``		Appelez-nous	-
19	5300809543		Side Base Angle Kit (2)		Appelez-nous	-
20	5300808670		Support Channel (2)		Appelez-nous	-
21	3018150		Rear Brace		Appelez-nous	-
22	08057593		Junction Box Cover		Appelez-nous	-
23	5300807019		Junction Box Bracket		Appelez-nous	-
24	5300809212		Hinge Weld Assy		Appelez-nous	-
25	5300809144		Wire Shield		Appelez-nous	-
26	5300809711		Insulation Retainer		Appelez-nous	-
*68289	5300809241		Water Inlet Valve		Appelez-nous	-
12A	154109801		Shield-relay (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
