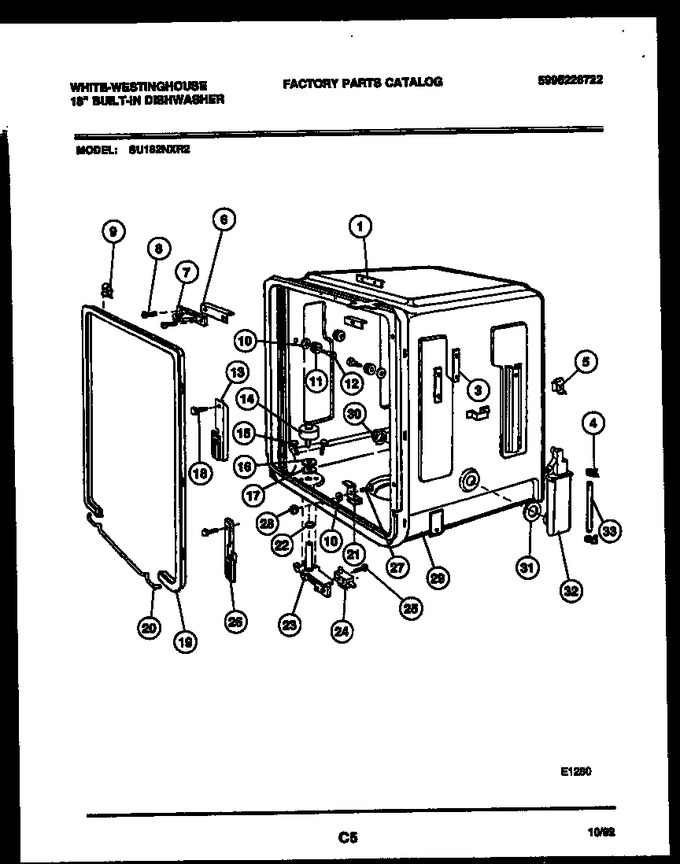

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300808868		Latch Tapping Plate		Appelez-nous	-
3	5300807038		Tapping Plate (4)				$ 4.94
4	5300807813		Clamp (2)		Appelez-nous	-
5	5300806291		Cage Nut (4)		Appelez-nous	-
6	5300809214		Shim		Appelez-nous	-
7	5300807015		Door Strike		Appelez-nous	-
8	131302901		Screw-10 X 3/4`` (2)   (Replaces: 5300806890)				$ 4.96
9	5300805763		Tub Gasket Clip Kit-include 21		Appelez-nous	-
10	5300809044		Washer (8)		Appelez-nous	-
11	5304507405		Tub Roller (8)   (Replaces: 154080001)			Immediately	$ 25.79
12	5300808564		Screw & Washer Kit-includes 10 (8)				$ 34.02
13	5300807599		Arm Guide Lh		Appelez-nous	-
14	154112701		Float		Appelez-nous	-
15	154103701		Screw 10 X 1``		Appelez-nous	-
16	5300808064		Float Tube Plate		Appelez-nous	-
17	5300808063		Float Tube Gasket				$ 6.14
18	154419403		Screw 8 X 3/8``   (Replaces: 5300808658)				$ 13.10
19	5300809633		Tub Gasket & Wire Assy				$ 201.76
20	154059402		Junction Rod		Appelez-nous	-
21	5300808115		Dam Clip		Appelez-nous	-
22	5300807759		O - Ring				$ 4.88
23	5300809859		Float Switch Kit		Appelez-nous	-
24	5300809863		Float Switch				$ 65.73
25	5300809864		Screw-4-24 X 5/8``		Appelez-nous	-
26	5300807600		Arm Guide-rh		Appelez-nous	-
27	5300803319		Screw-8-32 X 1/2``		Appelez-nous	-
28	5300803346		Nut		Appelez-nous	-
29	5300809716		Tub & Gasket Assy		Appelez-nous	-
30	5300805669		Nut		Appelez-nous	-
31	154053601		Water Inlet Gasket		Appelez-nous	-
32	5300806470		Water Inlet Assy		Appelez-nous	-
33	5300807891		Water Inlet Tubing-includes 4		Appelez-nous	-
*68284	154641601		Insulation 3-sided   (Replaces: 5303208369)				$ 6.15
