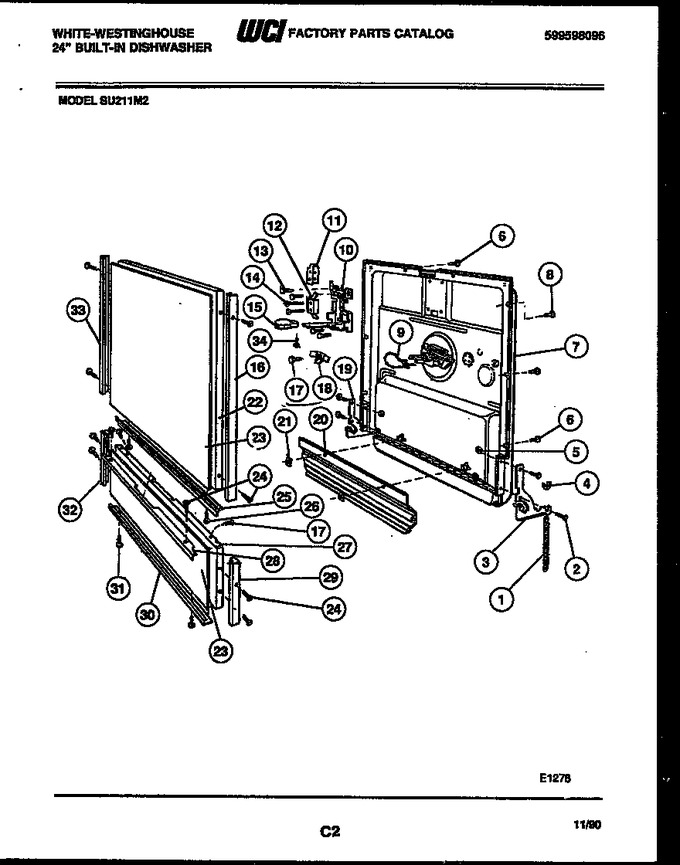

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809360 | Door Spring (2) |
|
$ 47.67 | |||||
| 2 | 5300803311 | Screw-10-24 X 5/8`` (4) |
|
- | |||||
| 3 | 5300805681 | Arm Assy. Rh |
|
$ 98.70 | |||||
| 4 | 5300805884 | Spring Pad (2) |
|
- | |||||
| 5 | 5300808470 | Nut |
|
- | |||||
| 6 | 5300809055 | Screw-8 X 7/16`` (4) |
|
$ 1.21 | |||||
| 7 | 5300809052 | Door Assy |
|
- | |||||
| 8 | 5300808749 | Screw-8 X 5/8``(6) |
|
- | |||||
| 9 | 5300809075 | Wire Tie |
|
- | |||||
| 10 | 5300809832 | Latch Assy. |
|
- | |||||
| 11 | 5300807450 | Switch Cover |
|
- | |||||
| 12 | 5300807043 | Switch |
|
- | |||||
| 13 | 5300809029 | Screw-8a X 5/8`` (5) |
|
- | |||||
| 14 | 5300808618 | Screw-6-32 X 1`` |
|
- | |||||
| 15 | 5300808712 | Latch Knob |
|
$ 31.71 | |||||
| 16 | 5300808990 | Door Panel Trim-rh |
|
- | |||||
| 17 | 154419403 | Screw 8 X 3/8`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 18 | 5300808933 | Grounding Terminal |
|
- | |||||
| 19 | 5300805682 | Arm Assy L.h. |
|
$ 93.56 | |||||
| 20 | 5300809025 | Baffle - Seal |
|
$ 56.49 | |||||
| 21 | 5300809695 | Speednut (2) |
|
- | |||||
| 22 | 5300807262 | Door Panel-white |
|
- | |||||
| 23 | 5300808908 | Door & Access Panel Inserts-alm/black |
|
- | |||||
| 24 | 5300809696 | Screw-6 X 1/4 (10) |
|
- | |||||
| 25 | 5300807347 | Door Panel Trim-bottom |
|
- | |||||
| 26 | 5300807501 | Screw-8 X 1/2`` (2) |
|
- | |||||
| 27 | 5300809108 | Access Panel-white |
|
- | |||||
| 28 | 5300808346 | Access Panel Trim-top |
|
- | |||||
| 29 | 5300808103 | Access Panel Trim-rh |
|
- | |||||
| 30 | 5300808105 | Access Panel Trim-bottom |
|
- | |||||
| 31 | 5304480396 | Screw-8 X 3/8`` (3) (Replaces: 5300803416) |
|
$ 11.34 | |||||
| 32 | 5300808104 | Access Panel Trim-lh |
|
- | |||||
| 33 | 5300808991 | Door Panel Trim-lh |
|
- | |||||
| 34 | 5300808715 | Screw, 8, 32 X 5/16`` |
|
- | |||||
| *39455 | 5300808936 | Wood Door Trim Kit-optional |
|
- | |||||
| *39455 | 5300808926 | Black Acrylic Door Kit-optional |
|
- |
