02 - Console And Control Parts
03 - Cam
04 - Door Parts

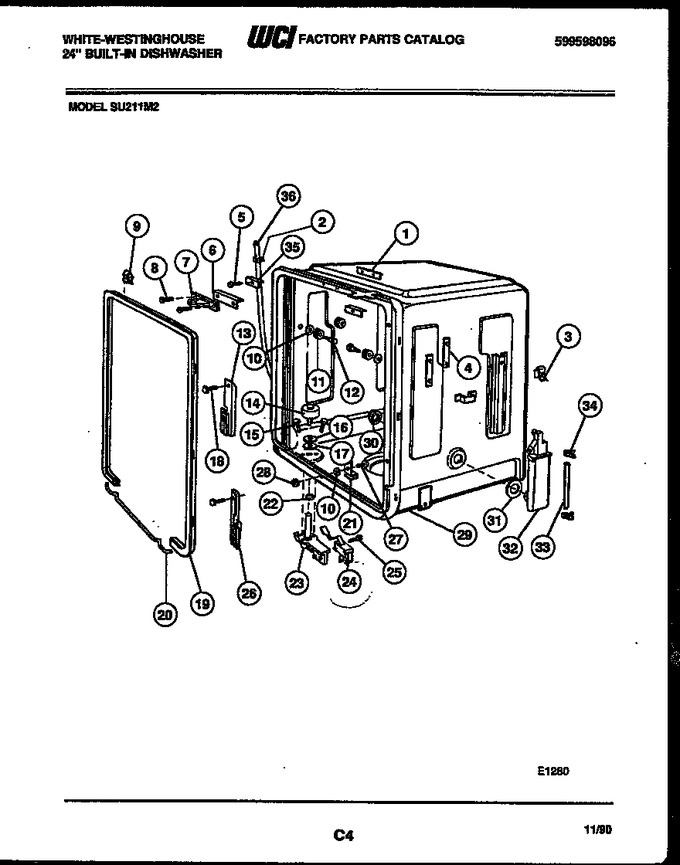

05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300808868 | Latch Tapping Plate |
|
- | |||||
| 2 | 5300808289 | Attach Clip |
|
$ 5.51 | |||||
| 3 | 5300806291 | Cage Nut |
|
- | |||||
| 4 | 5300807038 | Tapping Plate |
|
$ 4.94 | |||||
| 5 | 5300809678 | Screw |
|
- | |||||
| 6 | 5300809214 | Shim - Strike |
|
- | |||||
| 7 | 5300807015 | Door Strike |
|
- | |||||
| 8 | 131302901 | Screw-10 X 3/4`` (Replaces: 5300806890) |
|
$ 4.96 | |||||
| 9 | 5300805763 | Tub Gasket Clip Kit (includes 21) |
|
- | |||||
| 10 | 5300809044 | Washer |
|
- | |||||
| 11 | 5304507405 | Tub Roller (Replaces: 5300809917) |
|
Immediately | $ 25.79 | ||||
| 12 | 5300808564 | Screw & Washer Kit (includes 10) |
|
$ 34.02 | |||||
| 13 | 5300807470 | Arm Guide L H |
|
- | |||||
| 14 | 5300809861 | Float |
|
- | |||||
| 15 | 5300807268 | Screw 10 X 1`` |
|
$ 5.93 | |||||
| 16 | 5300808064 | Float Tube Plate |
|
- | |||||
| 17 | 5300808063 | Float Tube Gasket |
|
$ 6.14 | |||||
| 18 | 5300806539 | Screw-10-24 X 7/8`` |
|
- | |||||
| 19 | 5300809035 | Gasket & Wire Assy-includes 9, 20 & 21 |
|
- | |||||
| 20 | 5300809320 | Gasket Junction Wire |
|
- | |||||
| 21 | 5300808115 | Dam Clip |
|
- | |||||
| 22 | 5300807759 | O - Ring |
|
$ 4.88 | |||||
| 23 | 5300809859 | Float Switch Kit (includes 14, 16, 17, 22, 24 & 25) |
|
- | |||||
| 24 | 5300809863 | Float Switch |
|
$ 65.73 | |||||
| 25 | 5300809864 | Screw-4-24 X 5/8`` |
|
- | |||||
| 26 | 5300807471 | Arm Guide R H |
|
- | |||||
| 27 | 5300803319 | Screw-8-32 X 1/2`` |
|
- | |||||
| 28 | 5300803346 | Nut |
|
- | |||||
| 29 | 5300809257 | Tub & Gasket Assy |
|
- | |||||
| 30 | 5300805669 | Nut |
|
- | |||||
| 31 | 5300803573 | Water Inlet Gasket |
|
- | |||||
| 32 | 5300806470 | Water Inlet Assy |
|
- | |||||
| 33 | 5300807891 | Water Inlet Tubing-includes 34 |
|
- | |||||
| 34 | 5300807813 | Clamp |
|
- | |||||
| 35 | 5300809199 | Clip Shim |
|
- | |||||
| 36 | 5300809112 | Drain Hose |
|
$ 63.47 | |||||
| *39459 | 5304469950 | Tub Touch-up Kit-optional (Replaces: 5300807509) |
|
Immediately | $ 89.95 | ||||
| *39459 | 5300809512 | Tub Insulation |
|
- |
