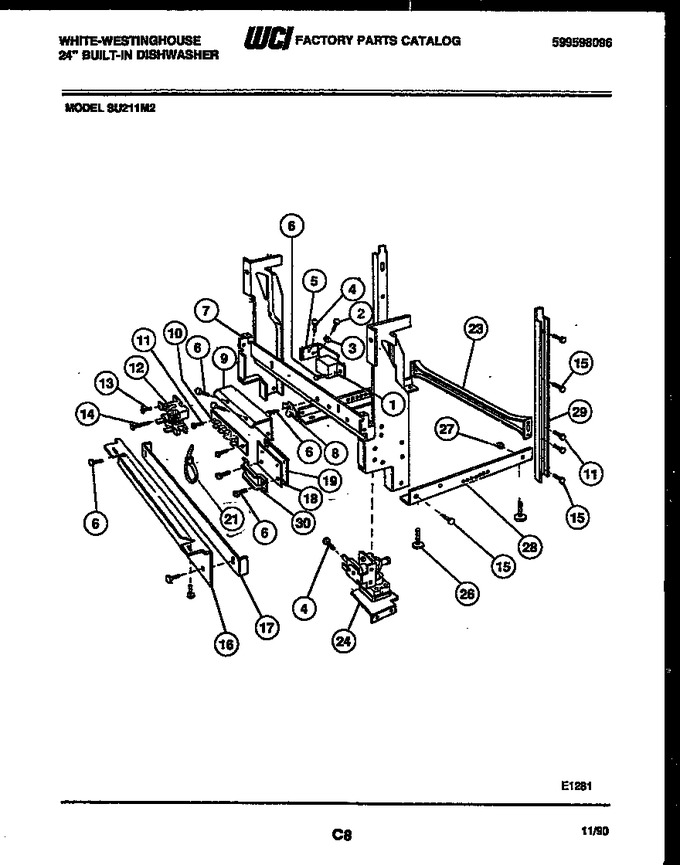

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300800222		Junction Box Cover		Appelez-nous	-
2	5300807951		Screw - 10 - 32 X 1/2``		Appelez-nous	-
3	5300807373		Washer		Appelez-nous	-
4	5300807004		Screw 10b X 1/2``		Appelez-nous	-
5	5300807019		Junction Box Bracket		Appelez-nous	-
6	154419403		Screw 8 X 3/8``   (Replaces: 5300808658)				$ 13.10
7	5300807848		Hinge Assy		Appelez-nous	-
8	5300808933		Grounding Terminal		Appelez-nous	-
9	5300807849		Terminal Board Bracket		Appelez-nous	-
10	5300807486		Terminal Block Assy		Appelez-nous	-
11	5300807501		Screw-8 X 1/2``		Appelez-nous	-
12	5300805255		Motor Relay		Appelez-nous	-
13	3018140		Screw-8-32 X 1/4``		Appelez-nous	-
14	3018141		Screw-8-32 X 1 1/4``		Appelez-nous	-
15	5300806889		Screw-1/4-20 X 15/32``		Appelez-nous	-
16	5300809765		Toeplate				$ 58.70
17	5300809303		Adjustable Toe Plate		Appelez-nous	-
18	5300809144		Wire Shield		Appelez-nous	-
19	5300809419		Wire Barrier		Appelez-nous	-
21	5304464772		Wire Tie   (Replaces: 5300809418)				$ 10.63
23	5300807852		Rear Brace		Appelez-nous	-
24	5300809240		Water Inlet Valve		Appelez-nous	-
26	5300809422		Leveler		Appelez-nous	-
27	5300804619		Nut		Appelez-nous	-
28	5300809526		Side Angle Kit		Appelez-nous	-
29	5300808670		Support Channel		Appelez-nous	-
30	5300806723		Wire Clamp		Appelez-nous	-
