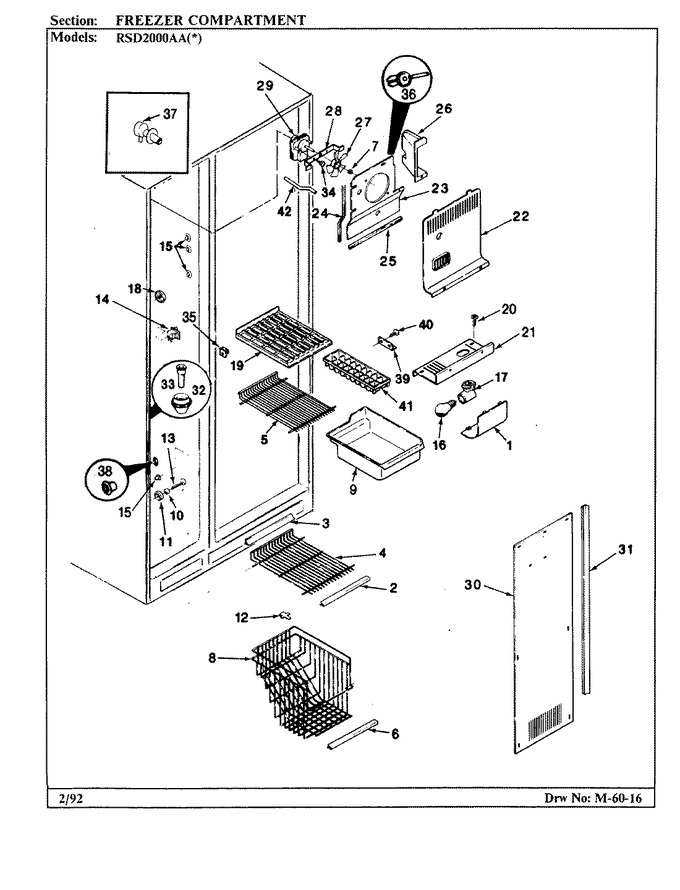

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67292-1 | Shield, Light |
|
- | |||||
| 2 | 67176-1 | Trim, Frz. Shelf Front |
|
- | |||||
| 3 | 67177-1 | Trim, Frz. Shelf Front |
|
- | |||||
| 4 | 67178-7 | Shelf, Frz. (no.2,3,4,5) |
|
- | |||||
| 5 | 67178-9 | Shelf, Frz. |
|
- | |||||
| 6 | 67176-13 | Trim |
|
- | |||||
| 7 | 420092-900 | Washer, Spring |
|
- | |||||
| 8 | 69353-1 | Basket, Frz. |
|
- | |||||
| 9 | WP67001255 | Pan, Ice (Replaces: 67140-1) |
|
$ 182.77 | |||||
| 10 | 67123-1 | Roller,wheel Basket |
|
- | |||||
| 11 | 67124-1 | Space Roller |
|
- | |||||
| 12 | 67488-2 | Clip, Stop |
|
- | |||||
| 13 | 65275-19 | Screw |
|
- | |||||
| 14 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 15 | 67466-1 | Cup, Shelf |
|
- | |||||
| 16 | W11679940 | Bulb, Light (Replaces: 31956-1) |
|
Immediately | $ 10.17 | ||||
| 17 | 29814-2 | Receptacle, Light |
|
- | |||||
| 18 | 68187-1 | Cap, Connector |
|
- | |||||
| 19 | 67114-3 | Shelf, Ice Tray |
|
- | |||||
| 19 | 60313-1 | Cup, Shelf |
|
- | |||||
| 20 | 400014-12 | Screw, Support Bracket |
|
- | |||||
| 21 | 67344-1 | Support, Light Shield |
|
- | |||||
| 22 | 66325-22 | Seal,fan Shield |
|
- | |||||
| 22 | 67225-1 | Shield, Fan |
|
- | |||||
| 23 | 67297-3 | Cover, Coil |
|
- | |||||
| 24 | 66325-14 | Seal, Foam Tray |
|
- | |||||
| 25 | 66325-21 | Seal (44``) |
|
- | |||||
| 26 | 67353-1 | Shield, Air Directional |
|
- | |||||
| 27 | 52120-4 | Blade, Evaporator Fan |
|
- | |||||
| 28 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 29 | WP61004888 | Motor, Evaporator Fan (Replaces: 69503-1) |
|
Immediately | $ 104.99 | ||||
| 30 | 400015-12 | Screw |
|
- | |||||
| 30 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 30 | 67335-5 | Cover, Coil Lower |
|
- | |||||
| 31 | 67562-1 | Coil Cover, Gasket |
|
- | |||||
| 32 | 52526-1 | Grommet |
|
- | |||||
| 33 | 26527-9 | Drain Tube |
|
- | |||||
| 34 | WP488729 | Screw (Replaces: 9986-45) |
|
Immediately | $ 7.01 | ||||
| 35 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 35 | 67143-1 | Support Ice Shelf |
|
- | |||||
| 36 | 59920-1 | Stud, Mounting Coil Cover |
|
- | |||||
| 37 | 68307-2 | Grommet, Water Entry |
|
- | |||||
| 38 | 67685-1 | Retainer |
|
- | |||||
| 39 | 67288-1 | Bracket, Mounting |
|
- | |||||
| 40 | 400026-1 | Screw |
|
- | |||||
| 41 | WP841180A | Tray, Ice (Replaces: 59281-5) |
|
Immediately | $ 41.00 | ||||
| 42 | 67676-1 | Tube, Fill |
|
- | |||||
| 42 | 53732-2 | U-nut Grounding |
|
- | |||||
| 42 | 67557-1 | Plug Button |
|
- | |||||
| 42 | 67593-3 | Plug, Tube |
|
- |
