01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Ice Maker Kit (rae3100aax)


07 - Shelves & Accessories


08 - Unit Compartment & System

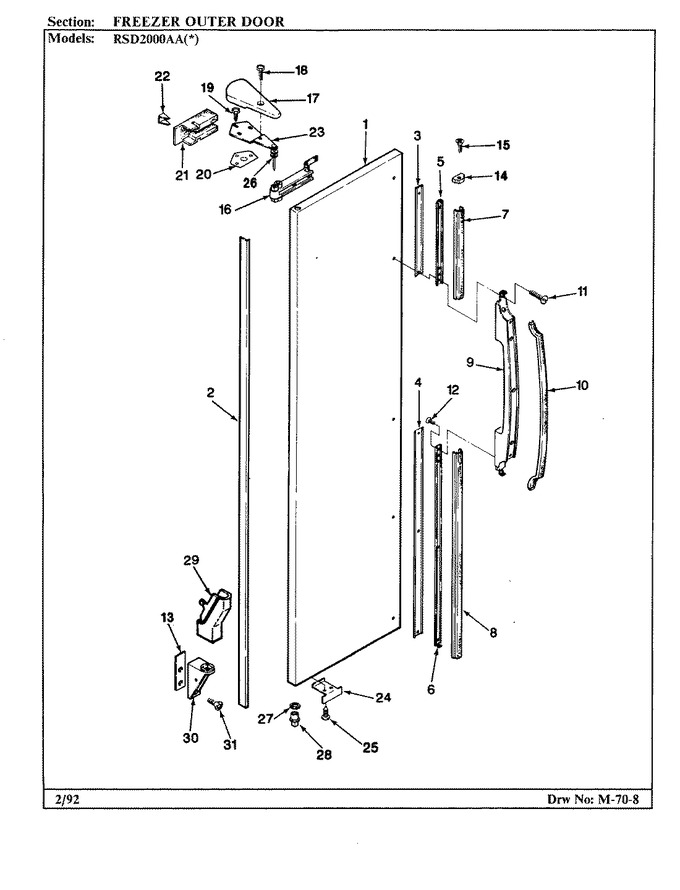

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72041-9-AM		Panel, Outer Door		Appelez-nous	-
2	66651-4		Trim, Door		Appelez-nous	-
3	67299-6		Shim, Trim Lock		Appelez-nous	-
4	67299-7		Shim, Trim Lock		Appelez-nous	-
5	67156-3		Bracket, Handle		Appelez-nous	-
6	67156-4		Bracket, Handle		Appelez-nous	-
7	67702-6		Trim, Extension		Appelez-nous	-
8	67702-7		Trim Extension		Appelez-nous	-
9	67151-1		Handle, Door		Appelez-nous	-
10	65275-44		Screw		Appelez-nous	-
10	67882-1		Insert, Handle (blk)		Appelez-nous	-
11	66799-3		Clip, Handle Screw		Appelez-nous	-
11	65275-29		Screw,handle Bottom (hex Head)		Appelez-nous	-
12	65275-31		Screw, Bracket To Handle		Appelez-nous	-
13	65275-59		Screw		Appelez-nous	-
13	69031-1		Shim		Appelez-nous	-
13	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
14	67380-3		Endcap, Handle		Appelez-nous	-
15	414004-7		Screw, Handle End Cap		Appelez-nous	-
16	54485-2		Door Closure		Appelez-nous	-
17	67229-3		Cover, Upper Hinge (alm.)		Appelez-nous	-
18	403060-1		Screw, Hinge Cover		Appelez-nous	-
19	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	67645-1		Insulation Door		Appelez-nous	-
22	52614-1		Bracket, Closer		Appelez-nous	-
23	67456-4		Hinge, Top		Appelez-nous	-
24	69022-1		Stop, Door		Appelez-nous	-
25	67386-1		Clip, Handle		Appelez-nous	-
25	65275-48		Screw		Appelez-nous	-
26	52185-2		Washer		Appelez-nous	-
27	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
28	68977-1		Pin, Hinge		Appelez-nous	-
29	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
30	68975-2		Hinge, Lower		Appelez-nous	-
31	65275-51		Screw, Lower Hinge		Appelez-nous	-
