SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Ice Maker Kit (rae3100aax)


07 - Shelves & Accessories


08 - Unit Compartment & System

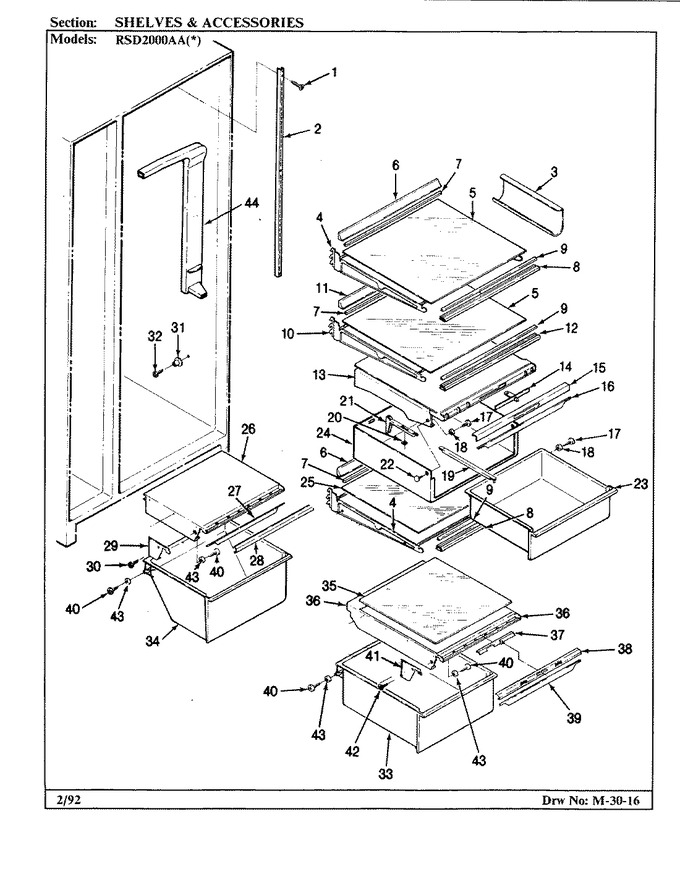

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	400037-28		Screw		Appelez-nous	-
2	67311-1		Rail, Shelf Support		Appelez-nous	-
3	67308-1		Holder, Wine Bottle		Appelez-nous	-
4	67273-1		Frame, Shelf		Appelez-nous	-
5	67267-5		Glass, Cantilever		Appelez-nous	-
6	67309-4		Trim, Cantilever		Appelez-nous	-
7	67266-4		Gasket, Shelf Rear		Appelez-nous	-
8	67783-4		Trim, Cantilever Shelf		Appelez-nous	-
9	67265-4		Gasket, Shelf Front		Appelez-nous	-
10	67274-1		Frame, Cantilever		Appelez-nous	-
11	67309-6		Trim, Cantilever		Appelez-nous	-
12	67783-6		Trim, Cantilever Shelf		Appelez-nous	-
13	67649-1		Meat Keeper Rail		Appelez-nous	-
14	67074-1		Control, Meat Keeper		Appelez-nous	-
15	67071-2		Trim, Meat Keeper		Appelez-nous	-
16	67677-2		Seal, Meat Pan		Appelez-nous	-
17	65275-6		Screw				$ 5.48
18	67423-1		Roller, Crisper Pan		Appelez-nous	-
19	67073-1		Linkage, Meat Keeper		Appelez-nous	-
20	431019-511		Nut		Appelez-nous	-
21	67072-3		Actuator, Meat Keeper		Appelez-nous	-
22	67688-1		Plug Button		Appelez-nous	-
23	67650-1		Meat Pan Assy.		Appelez-nous	-
24	67069-1		Housing, Meat Pan		Appelez-nous	-
25	67267-5		Glass, Cantilever		Appelez-nous	-
26	67892-1		Shelf, Crisper		Appelez-nous	-
27	67731-4		Seal		Appelez-nous	-
28	67204-6		Trim		Appelez-nous	-
29	67892-1		Shelf, Crisper		Appelez-nous	-
29	67895-2		Support, Crisper Shelf (rt)		Appelez-nous	-
30	65275-28		Screw		Appelez-nous	-
31	67162-1		Support, Crisper		Appelez-nous	-
32	W11233072		Screw   (Replaces: 400026-12)			Immediately	$ 12.62
33	67650-10		Meat Pan Assy.		Appelez-nous	-
34	67650-12		Pan, Crisper		Appelez-nous	-
35	67489-5		Glass, Crisper Shelf		Appelez-nous	-
36	67891-1		Shelf, Crisper		Appelez-nous	-
37	67491-1		Humidity Control		Appelez-nous	-
38	67204-1		Trim, Crisper		Appelez-nous	-
39	67731-4		Seal		Appelez-nous	-
40	65275-34		Screw		Appelez-nous	-
41	67895-1		Support, Crisper Shelf (lt)		Appelez-nous	-
41	67895-2		Support, Crisper Shelf (rt)		Appelez-nous	-
42	65275-28		Screw		Appelez-nous	-
43	67423-1		Roller, Crisper Pan		Appelez-nous	-
44	67526-2		Tunnel, Air		Appelez-nous	-
44	28013-2		Rivet, Air Tunnel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
