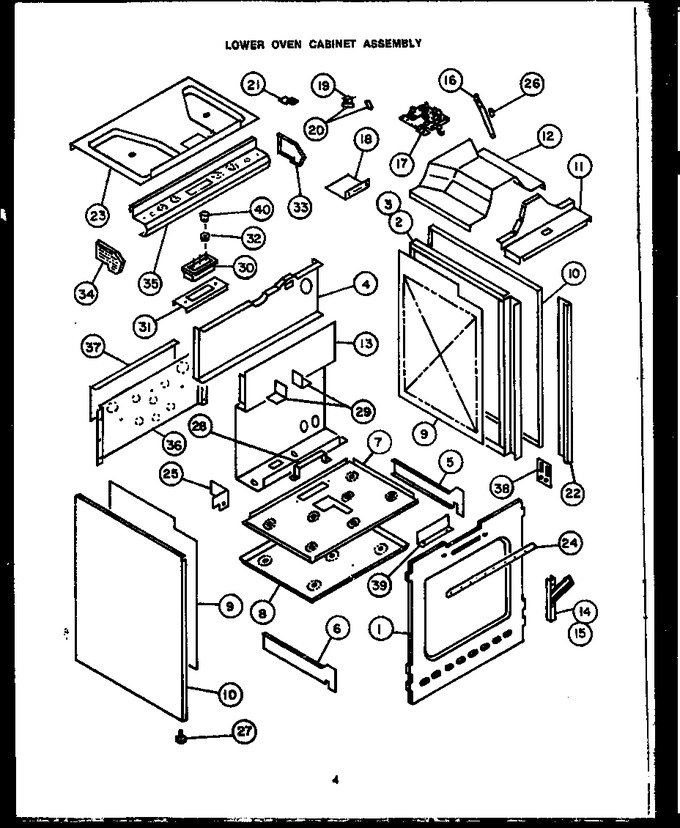

01 - Lower Oven Cabinet Assy


02 - Lower Oven Electrical Components


03 - Lower Storage Drawern200e09gas Compnt


04 - Oven Door Parts


05 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0063793		Frame, Front		Appelez-nous	-
2	Y0063045		Frame, Side Panel Rh		Appelez-nous	-
3	0062995		Sub 61127cg, Side Frame Lh		Appelez-nous	-
4	W10125043		Support Bracket, Oven Shell		Appelez-nous	-
5	0062698		Track, Stor. Drwr., R.h.		Appelez-nous	-
6	0062699		Track, L.h.		Appelez-nous	-
7	Y0063768		Retainer, Bottom Insul.		Appelez-nous	-
8	Y0063706		Shield, Heat		Appelez-nous	-
9	0062876		Retainer, Insulation		Appelez-nous	-
10	W10124845		Main End, Harvest		Appelez-nous	-
10	W10124843		Main End Avocado		Appelez-nous	-
10	W10124844		Main End Coffee		Appelez-nous	-
10	W10124846		Panel, Main End - R.h. - Almon		Appelez-nous	-
10	W10124847		Panel, Main End - R.h. - Almon		Appelez-nous	-
11	Y0062793		Retainer, Insul.		Appelez-nous	-
12	0062791		Retainer, Top Insul.		Appelez-nous	-
13	Y0062772		Sub 61816, Rear Panel, Lower		Appelez-nous	-
14	Y0066954		Kit, Door Hinge (rh-ss)		Appelez-nous	-
15	Y0066953		Kit, Door Hinge(lh-hs)		Appelez-nous	-
16	Y0063141		Latch Arm (chrome)		Appelez-nous	-
17	Y0063733		Latch Assembly		Appelez-nous	-
18	0068101		Bracket, Latch Mounting		Appelez-nous	-
19	0079659		Switch		Appelez-nous	-
20	Y0091523		Insulation, Esm		Appelez-nous	-
21	Y0068091		Bracket, Switch Mounting		Appelez-nous	-
22	0061472		Trim, Side Panel		Appelez-nous	-
23	Y0062889		Burner Box		Appelez-nous	-
24	0062750		Sub 62750cg, Filler Front Fram		Appelez-nous	-
25	Y0062710		Cover Plate		Appelez-nous	-
26	Y0067844		Knob, Latch - Black		Appelez-nous	-
27	Y0076205		Sub 62362, Leg, Leveling		Appelez-nous	-
28	0063767		Cover, Br. Brnr. Ign.		Appelez-nous	-
29	0063758		Bracket, Gas Valve		Appelez-nous	-
30	0061535		Clock, Automatic		Appelez-nous	-
31	0061534		Mtg. Bracket, Clock		Appelez-nous	-
32	Y0061484		Bushing, Shaft,black Nylon		Appelez-nous	-
33	0063192		End Cap, Rh (chrome)		Appelez-nous	-
34	0063191		End Cap, Lh (chrome)		Appelez-nous	-
35	0061536		Control Panel		Appelez-nous	-
36	Y0061538		Cover, Rear		Appelez-nous	-
37	Y0061537		Shield		Appelez-nous	-
38	0062505		Sub 61748, Bracket, Door Inter		Appelez-nous	-
39	0061443		Heat Shield, Clock		Appelez-nous	-
40	0063441		Knob, Clock		Appelez-nous	-
