01 - Lower Oven Cabinet Assy


02 - Lower Oven Electrical Components


03 - Lower Storage Drawern200e09gas Compnt


04 - Oven Door Parts


05 - Page 1

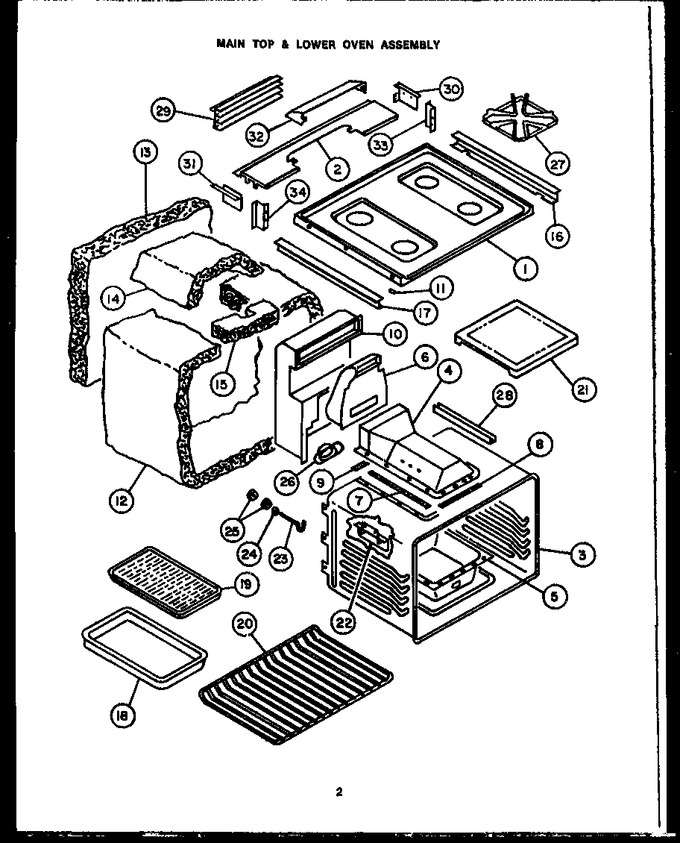

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0061516		Sub 60619k, Main Top Chrome		Appelez-nous	-
2	Y0061530		Lo Backrail		Appelez-nous	-
3	Y0063647		Oven Shell		Appelez-nous	-
4	Y0062892		Chamber, Broiler		Appelez-nous	-
5	Y0063802		Burner Box, Lower		Appelez-nous	-
6	0062770		Flue		Appelez-nous	-
7	Y0062758		Gasket, Side		Appelez-nous	-
8	0062757		Gasket, Front		Appelez-nous	-
9	0062754		Gasket, Oven Back		Appelez-nous	-
10	0063552		Flue, Dilution		Appelez-nous	-
11	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
12	Y0062947		Sub 41966, Insulation		Appelez-nous	-
13	Y0062945		Sub 41966, Insulation		Appelez-nous	-
14	Y0062946		Sub 41966, Insulation		Appelez-nous	-
15	Y0062944		Sub 41966, Insulation		Appelez-nous	-
16	Y0061447		Sub 61499, Trim, Top R.h.		Appelez-nous	-
17	0061446		Sub 61498, Trim, Top L.h.		Appelez-nous	-
18	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
19	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
20	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
21	Y0062891		Oven Bottom		Appelez-nous	-
22	0062792		Shield, Thermostat Bulb		Appelez-nous	-
23	Y0091536		Hook Bolt		Appelez-nous	-
24	Y0071876		Washer		Appelez-nous	-
25	0071881		Sub 41847, Hex Nut		Appelez-nous	-
26	Y0062799		Cup, Duct		Appelez-nous	-
27	Y0067909		Grate, Delux		Appelez-nous	-
28	Y0063775		Channel, Br. Brnr.		Appelez-nous	-
29	Y0061510		Trim Piece, Flue		Appelez-nous	-
30	0061529		End Cap, Rh		Appelez-nous	-
31	0061528		X End Cap, Lh		Appelez-nous	-
32	W10125649		Cover, Dilution Flue		Appelez-nous	-
33	0061542		Support, Backguard, Rh		Appelez-nous	-
34	0061541		Support, Backguard, Lh		Appelez-nous	-
