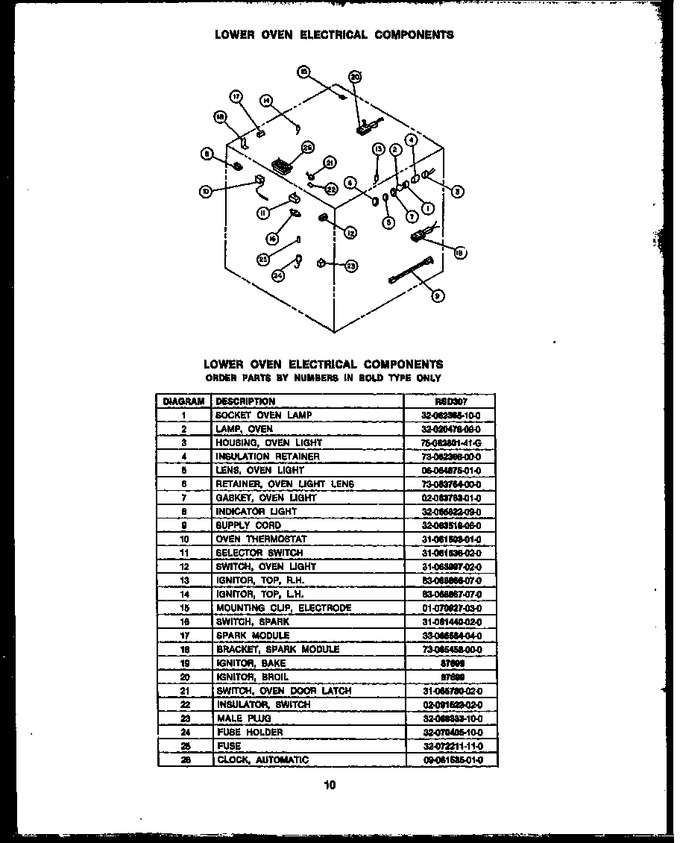

01 - Lower Oven Cabinet Assy


02 - Lower Oven Electrical Components


03 - Lower Storage Drawern200e09gas Compnt


04 - Oven Door Parts


05 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0062365		Socket, Oven Light		Appelez-nous	-
2	8009		Sub A0282806   (Replaces: Y0020478)			Immediately	$ 16.80
3	W10125652		Housing, Oven Light		Appelez-nous	-
4	0062366		Retainer, Insul Ov. Lite		Appelez-nous	-
5	Y0064875		Lens, Oven Light		Appelez-nous	-
6	0063764		Retainer, Oven Light Lens		Appelez-nous	-
7	0063763		Gasket, Oven Light		Appelez-nous	-
8	0065822		Light Indicator		Appelez-nous	-
9	Y0063518		Supply Cord		Appelez-nous	-
10	Y0061503		Thermostat, Oven		Appelez-nous	-
11	Y0061636		Selector Switch		Appelez-nous	-
12	Y0063997		Switch, Rocker		Appelez-nous	-
13	Y0068866		Sub 59117, Electrode Assy., 30		Appelez-nous	-
14	Y0068867		Electrode 29``		Appelez-nous	-
15	WPY0070927		Mounting Clip   (Replaces: Y0070927)				$ 6.85
16	Y0061440		Spark Switch		Appelez-nous	-
17	Y0066564		Spark Module		Appelez-nous	-
18	Y0065458		Bracket, Spark Module Mtg.		Appelez-nous	-
19	786324		Kit, Ignitor-bake/broil   (Replaces: Y0087699)			Immediately	$ 60.68
20	786324		Kit, Ignitor-bake/broil   (Replaces: Y0087699)			Immediately	$ 60.68
21	Y0065780		Switch, Clean Circuit				$ 11.77
22	Y0091523		Insulation, Esm		Appelez-nous	-
23	Y0068333		Male Loading Plug		Appelez-nous	-
24	Y0070405		Fuseholder		Appelez-nous	-
25	Y0072211		Fuse, 5 Amp				$ 22.83
26	0061535		Clock, Automatic		Appelez-nous	-
