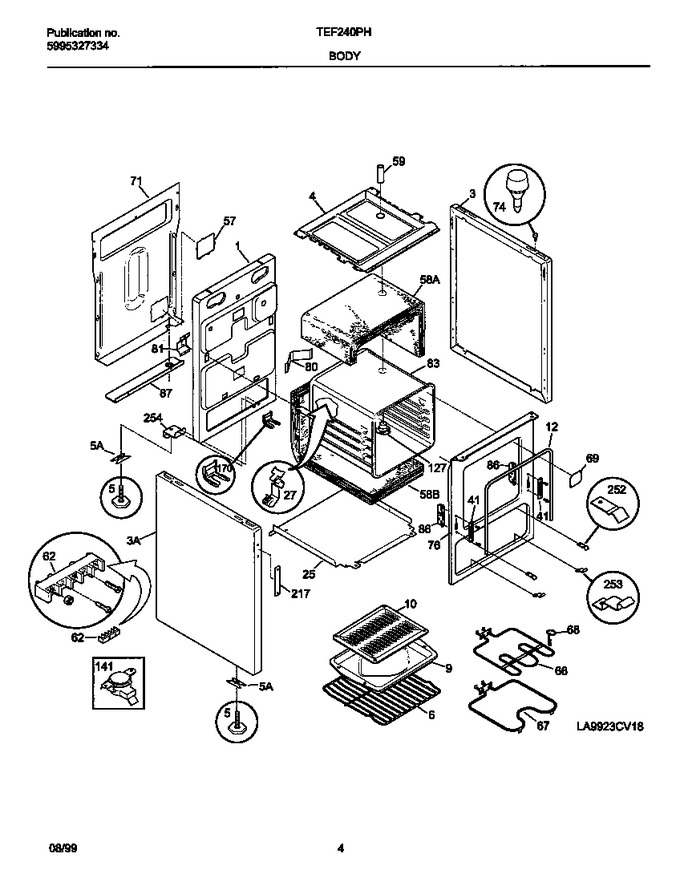

SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318095001 | Back-main |
|
- | |||||
| 3 | 5303324477 | Panel-bodyside,white ,(2) |
|
- | |||||
| 3 | 318025520 | Panel-bodyside,white ,lh |
|
- | |||||
| 4 | 5303325068 | Shield-insulation |
|
- | |||||
| 5 | 318175510 | Screw-levelling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 5 | 08013303 | Tee Nut,snap-in ,levelling Screw |
|
- | |||||
| 6 | 5303324869 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318053400 | Gasket |
|
- | |||||
| 25 | 5303325069 | Shield,oven Bottom |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 57 | 5304413744 | Xxcover Inlet |
|
- | |||||
| 58 | 5303324832 | Insulation,bottom ,oven Back |
|
- | |||||
| 58 | 5303324827 | Insulation,top & Sides |
|
- | |||||
| 59 | 5303324426 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | UB400 | Element-bake (Replaces: 5303325092) |
|
Immediately | $ 44.96 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 69 | 318036411 | Plate-oven Light |
|
- | |||||
| 71 | 318086504 | Panel-cover |
|
- | |||||
| 74 | 5303310535 | Bumper Base |
|
- | |||||
| 76 | 318109700 | Frame-front |
|
- | |||||
| 80 | 5303324473 | Bracket-oven |
|
- | |||||
| 81 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 318089601 | Liner-oven,comp. |
|
$ 284.39 | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 87 | 318111810 | Plate-mounting |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 141 | 318003600 | Thermostat-safety |
|
$ 293.37 | |||||
| 170 | 318170401 | Xxbracket-anti-tips |
|
$ 7.61 | |||||
| 217 | 316042301 | Plate-warning,217 |
|
- | |||||
| 252 | 318173700 | Front Drawer Spring |
|
- | |||||
| 253 | 318180400 | Bracket Front Drawer |
|
- | |||||
| 254 | 318175600 | Bracket-anti-tips |
|
- | |||||
| *30283 | 5303308449 | Fastener |
|
- | |||||
| *30284 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *30285 | 5303323133 | Screw < 8-18 X 1/2 >,8-18 X 1/2 |
|
- | |||||
| *30286 | 5304400428 | Screw (8-15 X 1/8 ) |
|
$ 5.40 | |||||
| *30287 | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 |
