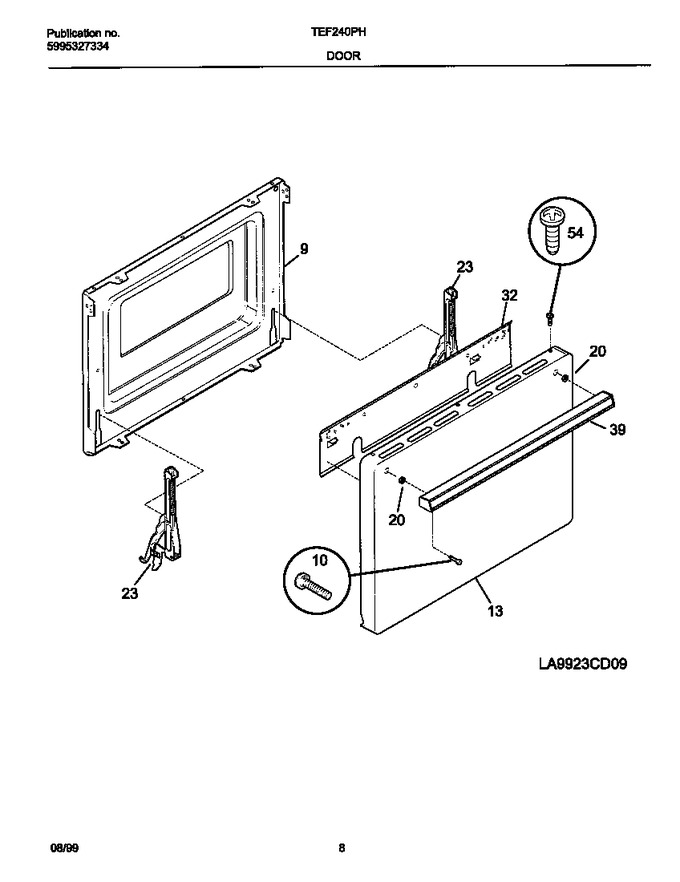

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318149601		Liner-oven Door		Appelez-nous	-
10	5303311135		Screw-handle,8-32 X 3/4 ,(2)		Appelez-nous	-
13	318009051		Xxpanel Door Ext.white,white		Appelez-nous	-
20	5303310504		Spacer-door Handle,(2)		Appelez-nous	-
23	5303325091		Hinge-oven Door		Appelez-nous	-
29	5303310535		Bumper Base		Appelez-nous	-
32	318057203		Deflector-handle				$ 5.63
39	5303325853		Handle-door,oven		Appelez-nous	-
54	5303300265		Screw, 8-18 X 1/2				$ 15.17
*30290	3201899		Washer, Hinge Assy, (4)		Appelez-nous	-
*30291	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*30292	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*30293	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*30294	5303310510		Screw <10-24 X 5/8 >				$ 14.18
