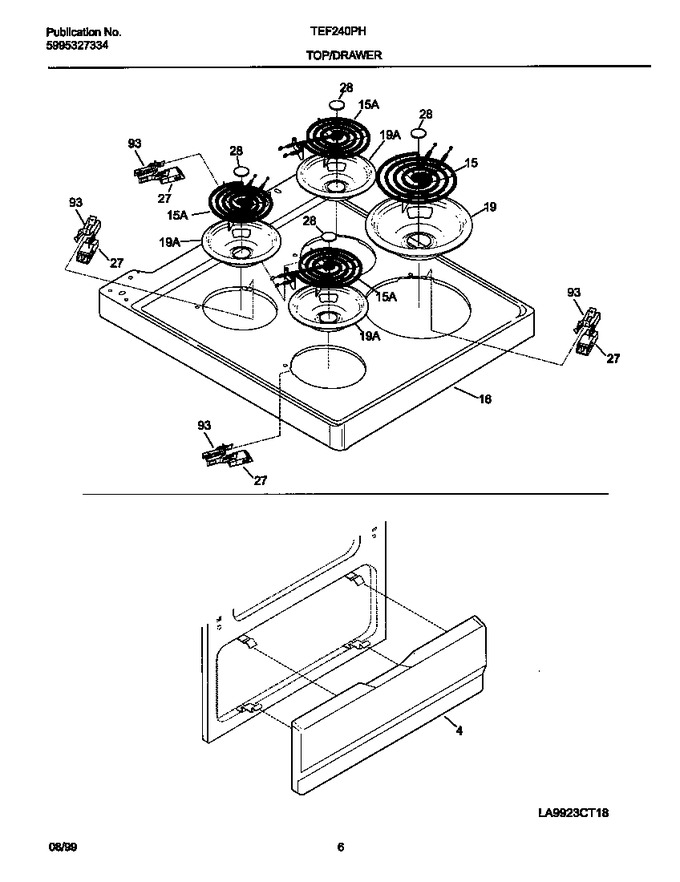

04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 318044221 | Panel-drawer,white |
|
- | |||||
| 15 | 5303325933 | Element,1250 W |
|
- | |||||
| 15 | 5303311320 | Element-surface,solid ,large/8 Inch |
|
- | |||||
| 16 | 318120921 | Main Top,white |
|
$ 451.67 | |||||
| 19 | 316048413 | Pan-surface Element,large ,chrome (Replaces: 318067020) |
|
Immediately | $ 9.85 | ||||
| 19 | 316048414 | Pan-surface Element,small ,chrome (Replaces: 318067021) |
|
Immediately | $ 16.11 | ||||
| 27 | RR500 | Terminal Block (Replaces: 5303323704) |
|
Immediately | $ 9.42 | ||||
| 28 | 5303309002 | Medallion, Surface Element |
|
- | |||||
| 93 | 5303324436 | Support,terminal Block ,(4) |
|
$ 24.24 | |||||
| *30288 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *30289 | 154079601 | Nut (Replaces: 3201885) |
|
$ 0.41 |
