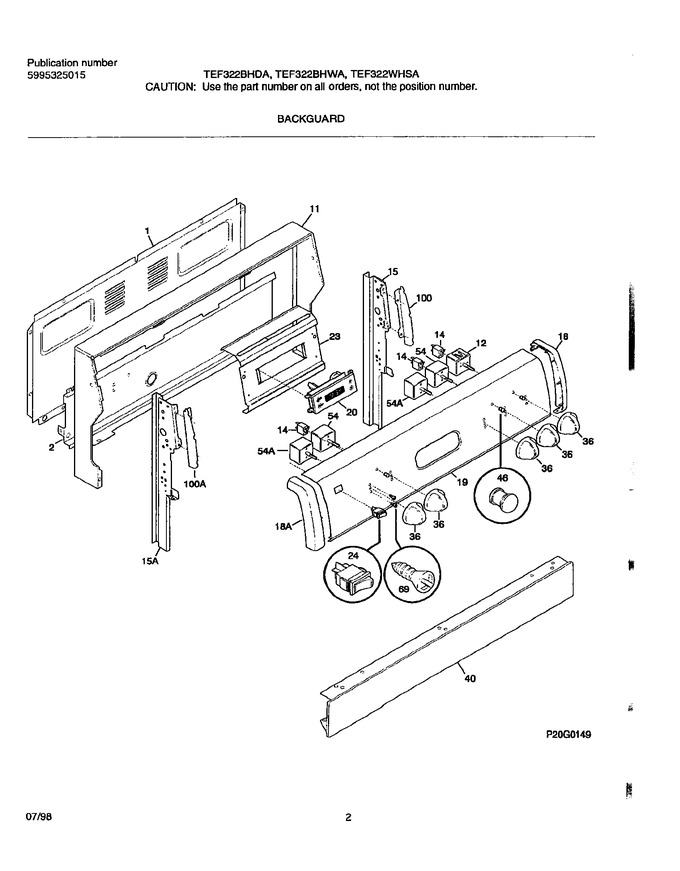

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061852		Trim-wrapper, Textured, White,white		Appelez-nous	-
14	316022504		Light-indicator		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	316115200		Cap-end,almond		Appelez-nous	-
19	316123601		Panel-control,metal		Appelez-nous	-
20	316115300		Overlay-clock		Appelez-nous	-
23	316115100		Bracket		Appelez-nous	-
36	316025106		Knob,control ,white				$ 57.64
40	316064030		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
100	316128300		Shield-backguard,rh		Appelez-nous	-
100A	316128301		Shield-backguard,lh		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
18A	316115201		Cap-end,almond		Appelez-nous	-
F12	316032407		Thermostat		Appelez-nous	-
F20	316116200		Clock/timer,tod		Appelez-nous	-
F24	5304527842		Switch,oven Light ,white ,rocker   (Replaces: 316118101)			Immediately	$ 16.13
F54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316000184		Owner`s Manual		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, No.8-18 X 3/8   (Replaces: 316021108)				$ 10.02
NI	316112500		Template, Anti-tip Bracket				$ 3.55
NI	5303292005		Screw (2)		Appelez-nous	-
NI	316002681		Diagram-wiring		Appelez-nous	-
NI	316021122		Screw,no.8-18 X 3/8 ,truss Hd White		Appelez-nous	-
