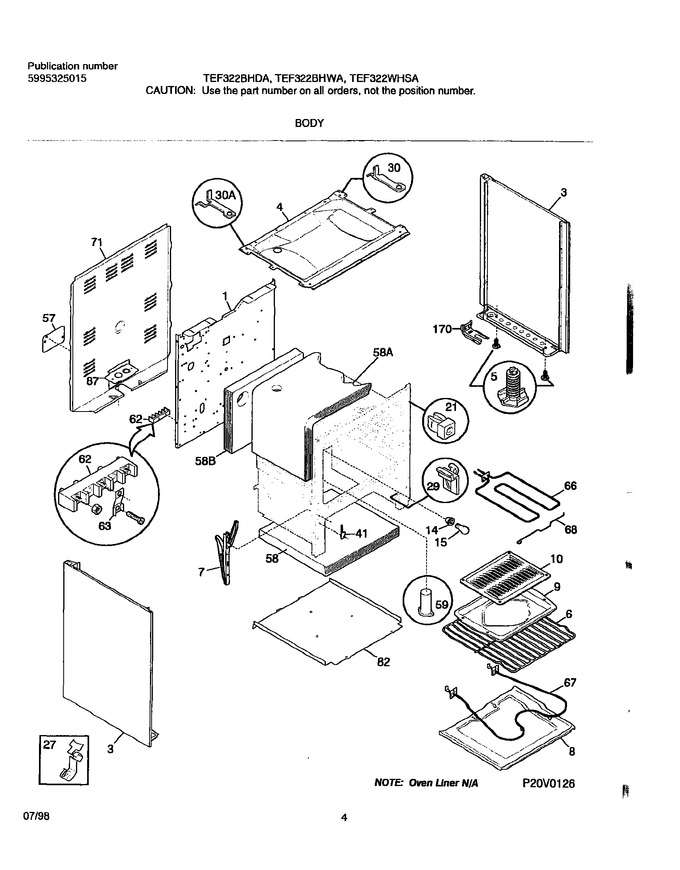

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080804		Back-main, Short,dipped ,black		Appelez-nous	-
3	316081035		Panel-bodyside,white ,lh		Appelez-nous	-
3	316081034		Panel-bodyside,white ,rh		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
5	316107300		Screw-leveling		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007003		Hinge-oven Door,assembly		Appelez-nous	-
8	3203540		Bottom Oven		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
21	3014099		Spaceer-bodyside				$ 3.62
27	5303284616		Clip - Capillary				$ 9.86
29	3051162		Gilde-drawer, Front			Immediately	$ 8.22
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
41	3131570		Cover-hinge (2)				$ 7.35
57	316081101		Cover-access		Appelez-nous	-
58	3200847		Insul. Lower		Appelez-nous	-
59	316073601		Tube, Oven Vent		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Elem Broil				$ 202.71
68	316075300		Support-element, Broil		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 12.89
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
30A	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
F62	5303935061		Main Terminal Block		Appelez-nous	-
F67	316075103		Element-bake   (Replaces: 316075102)			Immediately	$ 42.36
NI	316519700		Screw, Cup Pt, No.8-18 X 3/8   (Replaces: 316021108)				$ 10.02
NI	316001563		Harness-main		Appelez-nous	-
NI	5303051099		Nut		Appelez-nous	-
NI	5308014215		Screw, No.6-20 X 5/16, (4)				$ 2.28
NI	3203550		Button-plug (2)			Immediately	$ 15.22
