SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

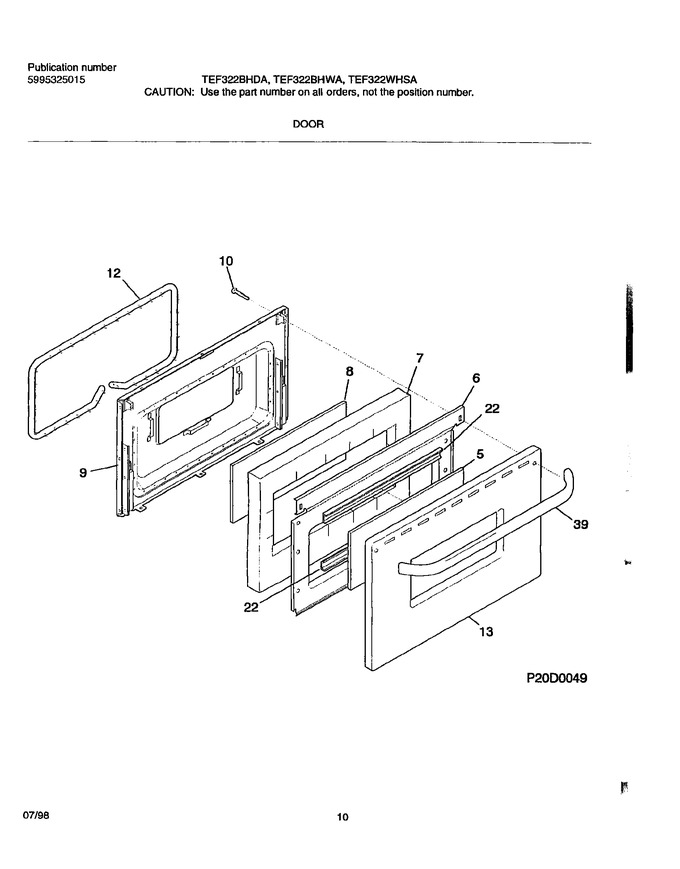

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316050300		Glass, Oven Door, White, Front		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
12	5303202011		Seal				$ 166.84
13	3017081		Panel, Oven Door, White		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
22	5303272476		Angle Glass Retainer (2)		Appelez-nous	-
39	5304530039		Handle-door, White, Oven   (Replaces: 316091115)			Immediately	$ 167.43
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303292005		Screw (2)		Appelez-nous	-
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
NI	5303271648		Burner Box, Wafer Hd Sq Dr , 8-18ab X 1/2			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
