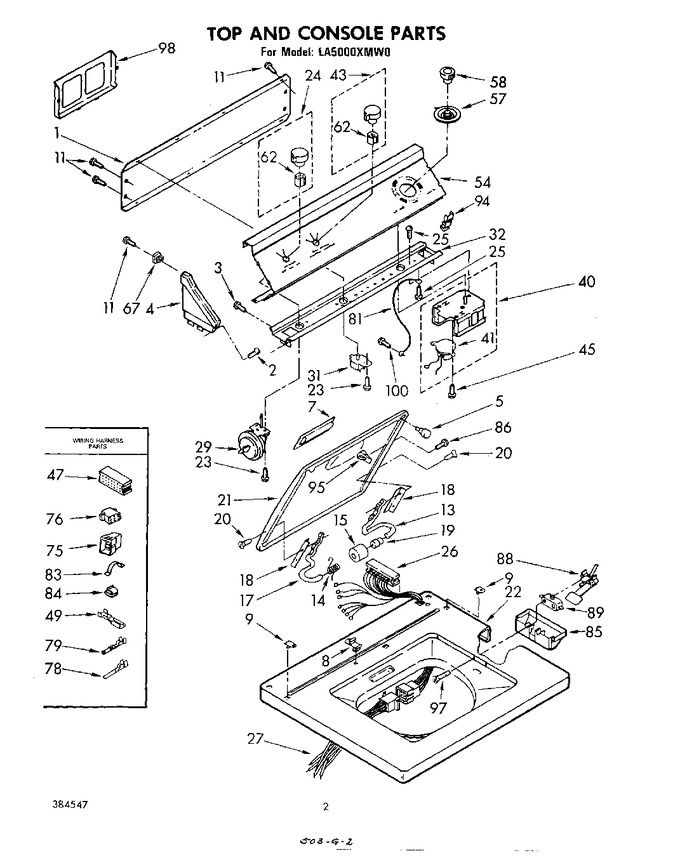

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358470		Panel, Rear Console		Appelez-nous	-
2	358225		Screw, 8-18 X 1 (2)		Appelez-nous	-
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	375337		Cap, End (l.h.) (white)		Appelez-nous	-
4	375333		Cap, End (l.h.) (white Cap, End (r.h.))		Appelez-nous	-
5	WP9724509		Bumper, Rubber   (Replaces: 93770)			Immediately	$ 7.14
7	WP686711		Handle, Lid   (Replaces: 94941)			Immediately	$ 7.16
8	358472		Nut, Push-in (1)		Appelez-nous	-
9	358473		Nut, Snap In (2)				$ 5.84
11	W11693756		Screw, 8-15 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
14	DE81-05611A		Spring, Hinge   (Replaces: 92398)				$ 150.30
15	91605		Bumper, Lid Hinge		Appelez-nous	-
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw   (Replaces: 18724)			Immediately	$ 6.47
21	385360		Lid (white)		Appelez-nous	-
22	384018		Top (white)		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
24	690298		Knob & Clip, Water Level		Appelez-nous	-
25	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
26	385058		Harness, Console		Appelez-nous	-
27	358115		Harness, Base		Appelez-nous	-
29	660929		Switch, Water Level (363300) (alt.) (359648) (alt.)		Appelez-nous	-
31	660746		Switch, Water Temperature 358934 (alt.) 358935 (alt.)		Appelez-nous	-
32	359708		Bracket, Control		Appelez-nous	-
40	380288		Timer, 60 Hz.		Appelez-nous	-
41	365941		Motor, Timer 60 Hz.		Appelez-nous	-
43	690299		Knob & Clip, Water Temperature		Appelez-nous	-
45	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Disconnect   (Replaces: 352089)				$ 11.48
49	352088		Terminal, Female				$ 5.83
54	384678		Panel, Control		Appelez-nous	-
57	359817		Dial, Timer		Appelez-nous	-
58	359205		Knob, Timer		Appelez-nous	-
62	WP688805		Clip, Control Knob   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Nut, Push-in (4)		Appelez-nous	-
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
81	357535		Wire, Ground		Appelez-nous	-
83	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
84	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
86	354975		Screw & Washer		Appelez-nous	-
88	370959		Switch Actuator Assembly				$ 33.01
89	W10820036		Switch, Lid (364090) (alt.) (364091) (alt.) (367034) (alt.)   (Replaces: 660308)			Immediately	$ 27.45
94	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
95	357633		Strike, Lid Switch		Appelez-nous	-
97	354764		Screw & Washer		Appelez-nous	-
98	357645		Rack, Literature		Appelez-nous	-
100	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
