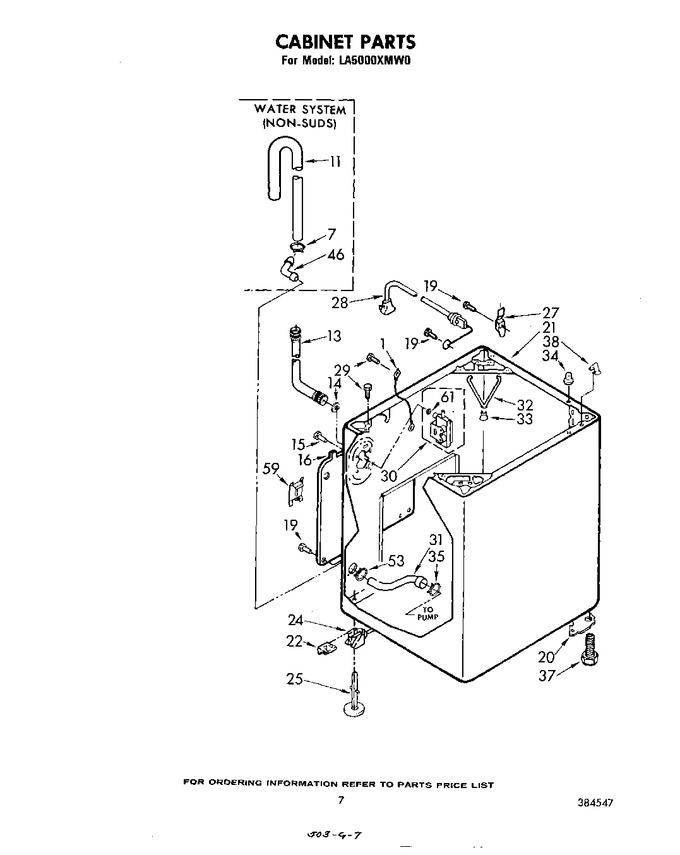

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	364089		Wire, Ground		Appelez-nous	-
7	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
11	WP96743		Hose, Drain   (Replaces: 96743)				$ 90.93
13	WP89503		Hose, Inlet   (Replaces: 81339)			Immediately	$ 21.68
14	WP16123		Washer, Rubber   (Replaces: 16123)				$ 6.93
15	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
16	85279		Panel, Rear		Appelez-nous	-
19	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
20	356459		Plate, Gusset		Appelez-nous	-
21	384793		Cabinet		Appelez-nous	-
22	WP359364		Clip, Leveling Mechanism (2)   (Replaces: 359364)			Immediately	$ 7.06
24	359059		Link, Leveling		Appelez-nous	-
25	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
27	92657		Hinge, L.h.		Appelez-nous	-
27	18775		Hinge, R.h.		Appelez-nous	-
28	92667		Cord, Power (60 Hz.)		Appelez-nous	-
29	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 7.07
30	660749		Valve, Mixing (358277) (alt.) (358971) (alt.) (serviced Only As Complete Assemblies)		Appelez-nous	-
31	21114		Hose, Pump Discharge		Appelez-nous	-
32	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
33	358336		Pad, Snubber			Immediately	$ 4.80
34	98669		Locator, Top				$ 12.03
35	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
37	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
38	WP18776		Lock, Front Top   (Replaces: 18776)			Immediately	$ 11.41
46	95440		Connector, Hose				$ 22.55
53	WP285655		Clamp   (Replaces: 370445)			Immediately	$ 7.55
59	354179		Plug, Cabinet		Appelez-nous	-
61	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
