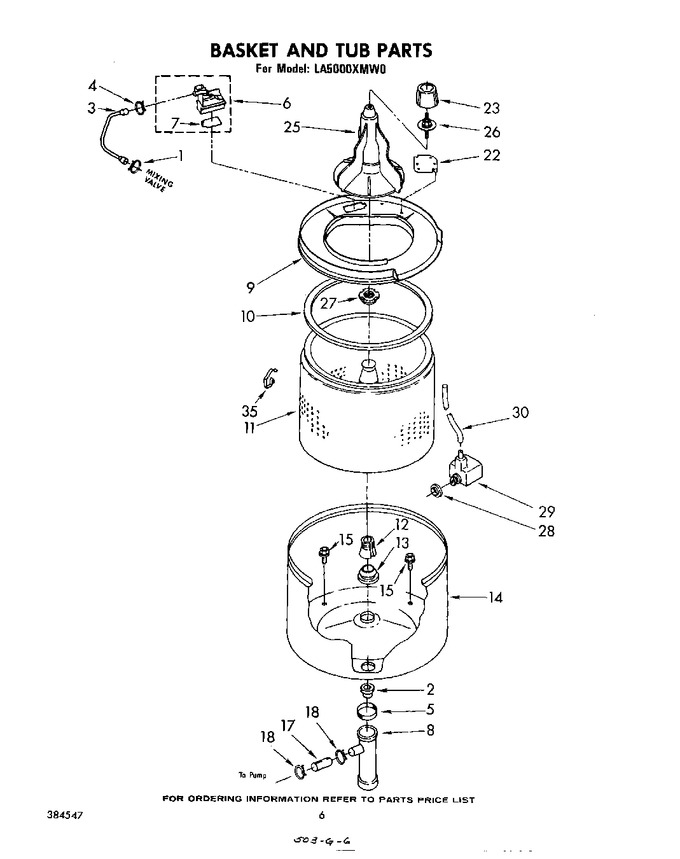

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
2	93553		Hose, Tub Outlet		Appelez-nous	-
3	356349		Hose, Water Inlet		Appelez-nous	-
4	WP596669		Clamp, Hose   (Replaces: 272847)			Immediately	$ 7.56
5	9421321		Clip, Hose		Appelez-nous	-
6	366072		Inlet, Water		Appelez-nous	-
7	355584		Flapper		Appelez-nous	-
8	84091		Manifold		Appelez-nous	-
9	381971		Ring & Filter, Tub (includes Illus. 22)		Appelez-nous	-
10	383553		Seal, Tub Ring		Appelez-nous	-
11	383960		Basket		Appelez-nous	-
12	96384		Block, Drive				$ 32.89
13	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
14	359592		Tub		Appelez-nous	-
15	WP358237		Screw & Washer, Tub (4)   (Replaces: 370571)			Immediately	$ 7.97
17	DE81-06162A		Hose   (Replaces: 92231)				$ 78.75
18	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
22	355852		Plate, Snubber		Appelez-nous	-
23	358431		Cap, Agitator		Appelez-nous	-
25	383952		Agitator & Insert		Appelez-nous	-
26	358440		Stud, Agitator Shaft		Appelez-nous	-
27	WP21366		Locknut   (Replaces: 21366)			Immediately	$ 8.00
28	351830		Seal				$ 5.84
29	360804		Air Dome Assembly		Appelez-nous	-
30	WP353244		Hose, Pressure Switch   (Replaces: 355517)			Immediately	$ 53.94
35	359763		Clip, Tub Ring (4)		Appelez-nous	-
