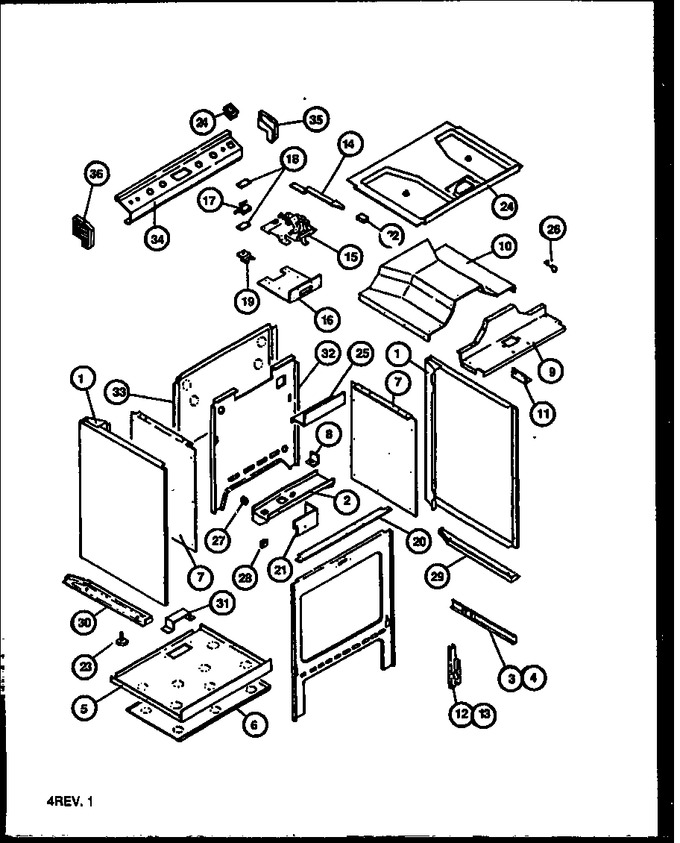

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302710L		Panel, Side (alm)		Appelez-nous	-
1	302710W		Panel, Side (wht)		Appelez-nous	-
2	0058890		Shelf, Gas Valve		Appelez-nous	-
3	0300475		Track, Storage Drawer-r.h.		Appelez-nous	-
4	Y0300474		Track, Storage Drawer-l.h.		Appelez-nous	-
5	Y0058896		Insul, Ret.-bottom		Appelez-nous	-
6	Y0063706		Shield, Heat		Appelez-nous	-
7	Y0303572		Side Insulation Retainer		Appelez-nous	-
8	0053182		Bracket, Gas Valve		Appelez-nous	-
9	Y0303461		Filler Control Panel		Appelez-nous	-
10	Y0303570		Insulation Retainer Top X		Appelez-nous	-
11	0302290		Bracket, Mounting		Appelez-nous	-
12	Y0066954		Kit, Door Hinge (rh-ss)		Appelez-nous	-
13	Y0066952		Kit, Door Hinge (lh-hs)		Appelez-nous	-
14	0303040		Arm, Door Latch		Appelez-nous	-
15	Y0063733		Latch Assembly		Appelez-nous	-
16	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
17	Y0065780		Switch, Clean Circuit				$ 11.77
18	Y0091523		Insulation, Esm		Appelez-nous	-
19	Y0302316		Bracket, Switch		Appelez-nous	-
20	302380B		Filler, Front Frame		Appelez-nous	-
21	Y0058916		Cover, Electrical		Appelez-nous	-
22	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
22	Y0300044		Knob, Door Latch Lt Gray		Appelez-nous	-
22	0300734		Knob, Latch		Appelez-nous	-
23	Y0300585		Leg, Leveling		Appelez-nous	-
24	Y0063997		Switch, Rocker		Appelez-nous	-
25	Y0058834		Cover, Elec. Wires		Appelez-nous	-
26	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
27	Y0042659		Snap Bushing		Appelez-nous	-
28	Y0091587		Cable, Clip Esm		Appelez-nous	-
29	Y0058991		Brace, Leveling Leg (lt)		Appelez-nous	-
30	Y0058992		Brace, Leveling Leg (lt)		Appelez-nous	-
31	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
32	Y0058994		Retainer, Rear Insulation		Appelez-nous	-
33	0302252		Rear Backguard & Cover Plate		Appelez-nous	-
34	0303241		Control Panel		Appelez-nous	-
34	0303223		Control Panel, White		Appelez-nous	-
35	0302985		End Cap, Control Panel, Rh		Appelez-nous	-
36	0302984		End Cap, Control Panel, Lh		Appelez-nous	-
NI	Y0041769		Screw 6 32x5/16 Ph Fh		Appelez-nous	-
NI	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
NI	Y0092365		Screw 4-40x1		Appelez-nous	-
NI	0062840		Cover Plate Latch		Appelez-nous	-
NI	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
NI	Y0301552		Anti-tip Pack		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	Y0300830		Screw No.10-32 X .375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
