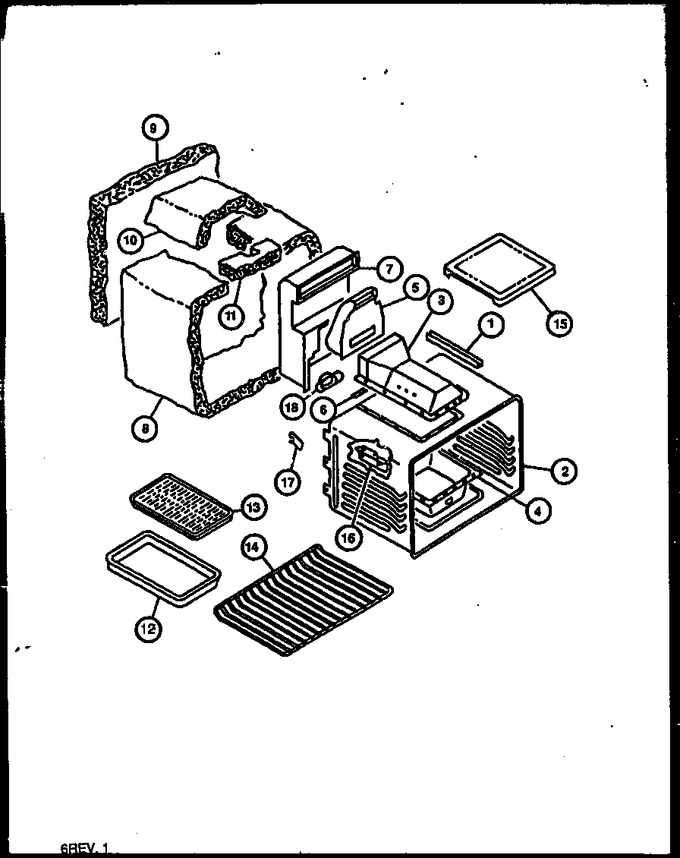

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0304019		Channel, Broil Burner		Appelez-nous	-
1	Y0063775		Channel, Br. Brnr.		Appelez-nous	-
2	304079E		Oven Shell Assy		Appelez-nous	-
2	58789CG		Oven Shell		Appelez-nous	-
3	Y0304632		Assy, Broil Chamber		Appelez-nous	-
3	Y0062892		Chamber, Broiler		Appelez-nous	-
4	Y0063802		Burner Box, Lower		Appelez-nous	-
5	0062770		Flue		Appelez-nous	-
5	0303463		Assy, Inner Flue		Appelez-nous	-
6	0062754		Gasket, Oven Back		Appelez-nous	-
7	0304578		Dilution Flue		Appelez-nous	-
7	0063552		Flue, Dilution		Appelez-nous	-
8	Y0062947		Sub 41966, Insulation		Appelez-nous	-
9	Y0062945		Sub 41966, Insulation		Appelez-nous	-
10	Y0062946		Sub 41966, Insulation		Appelez-nous	-
11	Y0062944		Sub 41966, Insulation		Appelez-nous	-
12	4396923		Pan, Broiler   (Replaces: 11161CG)			Immediately	$ 52.04
13	Y0304451		Grid, Broiler (cg)		Appelez-nous	-
14	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
15	Y0058625		Oven Bottom		Appelez-nous	-
16	0062792		Shield, Thermostat Bulb		Appelez-nous	-
17	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
18	Y0062799		Cup, Duct		Appelez-nous	-
18	Y0304115		Support, Maintop		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
NI	0300278		Chip Cover		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
