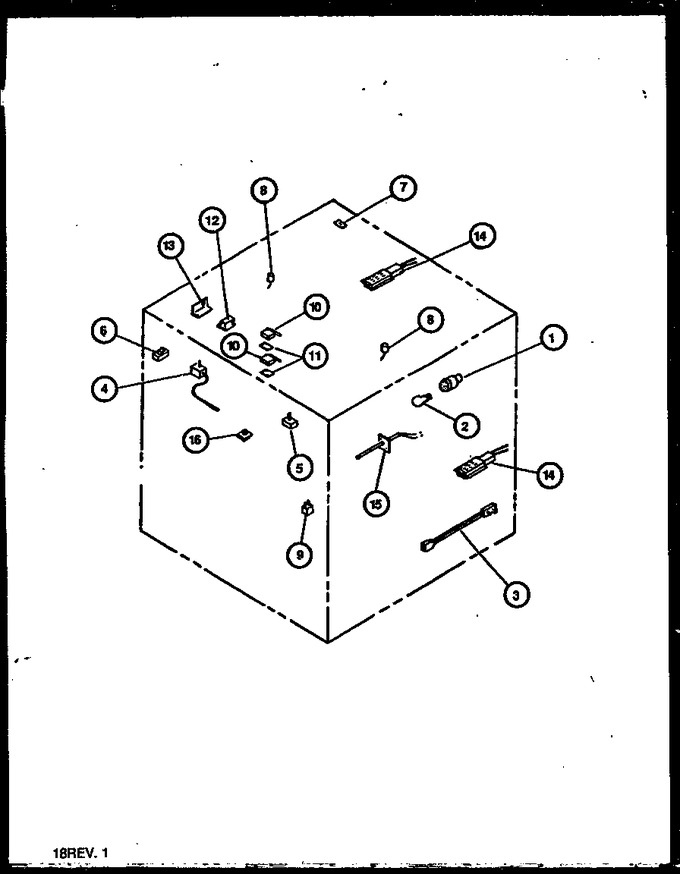

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74011278		Assy, Oven Light   (Replaces: Y0302471)				$ 101.56
1	WP74011278		Assy, Oven Light   (Replaces: Y0302472)				$ 101.56
2	Y0042175		Bulb, Light		Appelez-nous	-
3	Y0063518		Supply Cord		Appelez-nous	-
4	Y0303055		Oven Thermostat, Push To Turn		Appelez-nous	-
5	Y0061636		Selector Switch		Appelez-nous	-
6	Y0063997		Switch, Rocker		Appelez-nous	-
7	Y0304365		Clip, Electrode		Appelez-nous	-
8	Y0304357		Assy, Electrode		Appelez-nous	-
9	Y0068333		Male Loading Plug		Appelez-nous	-
10	Y0304579		Latch Switch Hi Temp		Appelez-nous	-
10	Y0065780		Switch, Clean Circuit				$ 11.77
11	Y0091523		Insulation, Esm		Appelez-nous	-
12	Y0302477		Spark Module		Appelez-nous	-
12	Y0305451		Kit,spark Module(service)		Appelez-nous	-
13	0302290		Bracket, Mounting		Appelez-nous	-
13	0300231		Bracket		Appelez-nous	-
14	786324		Kit, Ignitor-bake/broil   (Replaces: Y0087699)			Immediately	$ 60.68
15	Y0300769		Sensor, Erc		Appelez-nous	-
16	Y0300521		Switch,licon Gas Ignition				$ 57.33
NI	Y0304358		Wire Jumper Assy 20``		Appelez-nous	-
NI	Y0060182		Knob, Top Burner Assy		Appelez-nous	-
NI	0060237		Support, Circ Board		Appelez-nous	-
NI	Y0301277		Circuit Board, Erc-electric		Appelez-nous	-
NI	Y0302879		Knob, Thermostat		Appelez-nous	-
NI	0060181		Knob, Selector Assy		Appelez-nous	-
NI	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-
NI	0063780		Shield, Ignitor		Appelez-nous	-
