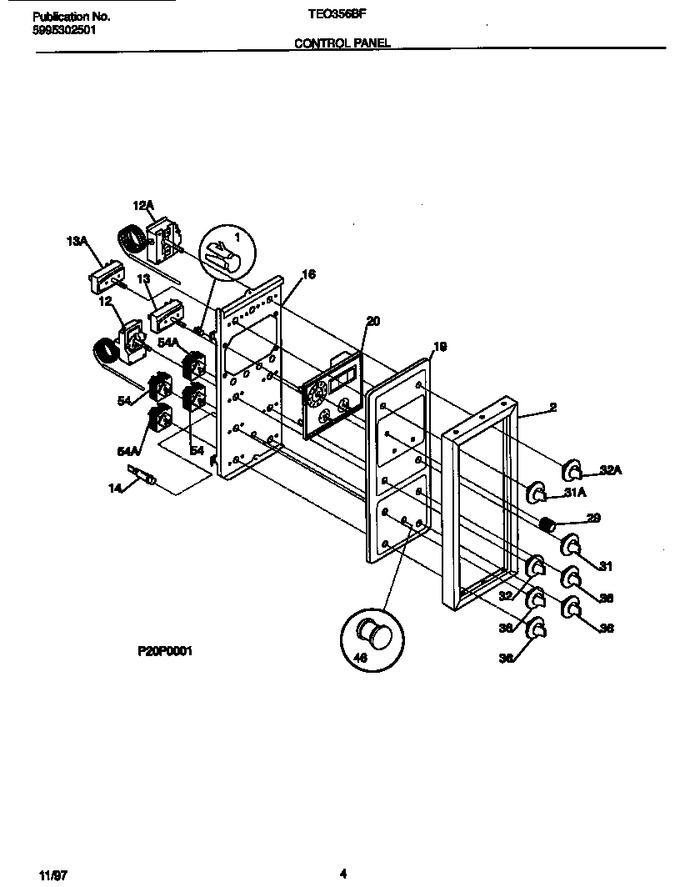

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011713		Fastener-clock		Appelez-nous	-
2	316013200		Trim-frame		Appelez-nous	-
12	5303202782		Thermostat-oven Upper		Appelez-nous	-
12	5303051320		Thermostat-oven Lower		Appelez-nous	-
13	5303051315		Switch-selector, Lower		Appelez-nous	-
13	3051316		Switch-selector, 5 Pos, Upper		Appelez-nous	-
16	318005801		Plate, Instrument Mtg		Appelez-nous	-
19	316007505		Panel-control, Glass		Appelez-nous	-
20	316007601		Clock/timer, Radial		Appelez-nous	-
29	316029008		Knob-clock				$ 40.16
31	316019168		Knob-selector		Appelez-nous	-
31	316019169		Knob-selector		Appelez-nous	-
32	316019163		Knob-thermostat, Upper		Appelez-nous	-
32	316019166		Knob-thermostat, Lower		Appelez-nous	-
36	316019170		Knob-control, 4		Appelez-nous	-
46	3051514		Lens-light/lamp, Indicator		Appelez-nous	-
54	5303285143		Switch, 8`` Element		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
*28642	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*28643	5303308556		Screw, 8-15a X 1.000		Appelez-nous	-
*28644	5308010401		Bushing-control Panel Glass		Appelez-nous	-
14A	5308037896		Indicator Light				$ 39.75
14B	5303091462		Light/lamp, Indicator, Clear, 250 V, (2) (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
