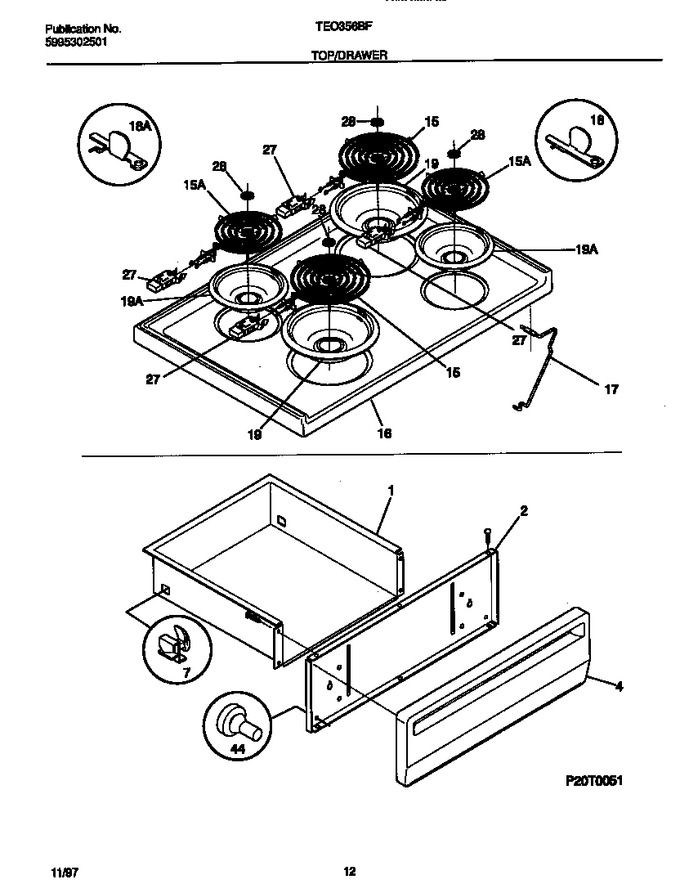

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
4	316021113		Screw-drawer Pnl (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303012223)			Immediately	$ 44.39
15	318372211		Element-surface, Small/6 Inch   (Replaces: 08067762)			Immediately	$ 45.14
16	3013512		Main Top-almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19	316048414		Pan-surface Element,chrome ,small/6 Inch,(2)			Immediately	$ 16.11
19	316048413		Pan-surface Element,chrome ,large/8 Inch,(2)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5308067828		Medallion, Surface Element		Appelez-nous	-
44	3131903		Bumper				$ 55.36
*28662	3012765		Harness-wiring, Top		Appelez-nous	-
