SELECT A DIAGRAM

01 - Cover


02 - Splasher-light


03 - Control Panel


04 - Lower Body


05 - Upper Body


06 - Top/drawer


07 - Lower Door


08 - Upper Door

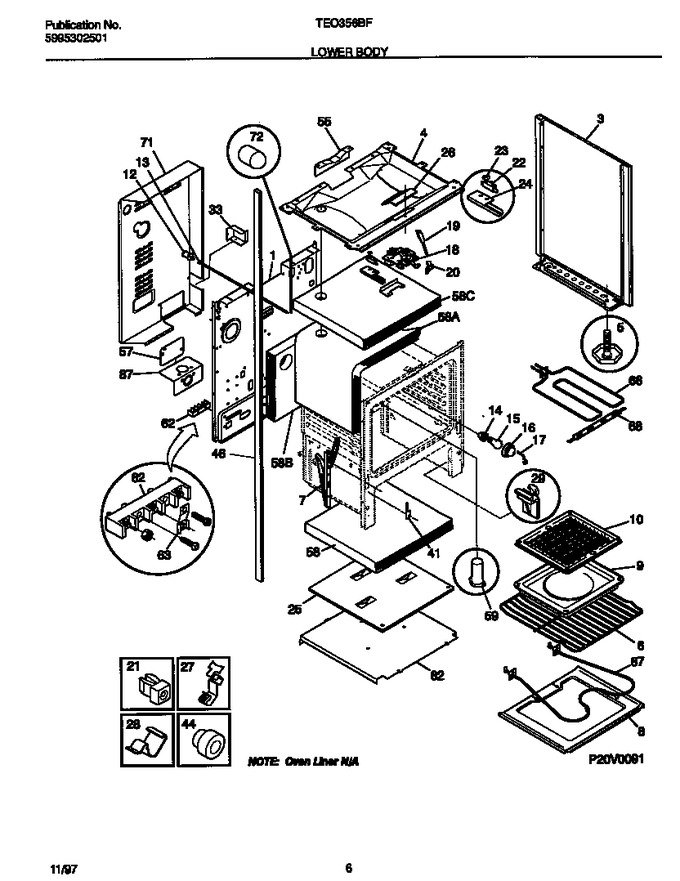

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
3	316081030		Panel-bodyside, Almond, Rh		Appelez-nous	-
3	316081031		Panel-bodyside, Almond, Lh (not Illustrated)		Appelez-nous	-
4	5303271658		Burner Box		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316082000		Pan-broiler				$ 68.85
10	316081900		Insert-broiler Pan				$ 65.89
12	316027702		Switch-oven Light		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light		Appelez-nous	-
17	316087500		Retainer,lens				$ 56.70
19	5303131357		Handle-latch				$ 37.33
21	3014099		Spacer-bodyside, (8)				$ 3.62
23	08067776		Fastener-push-on		Appelez-nous	-
24	3051413		Shield-latch		Appelez-nous	-
25	5304403169		Shield-heat, Lower		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3051367		Clip-wire		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
33	3203582		Shield-rear Wall		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
55	3051368		Shield-flue Cover		Appelez-nous	-
57	316081100		Cover,access		Appelez-nous	-
58	316047708		Insulation, Oven Wrapper				$ 222.56
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
58	316054200		Insulation, Oven Back		Appelez-nous	-
59	316073600		Tube-oven Vent		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075103		Element-bake   (Replaces: 316075102)			Immediately	$ 42.36
68	316075300		Support-element		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
82	5303314229		Shield, Oven Bottom		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
*28645	3131620		Shield-heat		Appelez-nous	-
*28646	08067754		Clip-thermo Bulb		Appelez-nous	-
*28647	08067961		Fastener-power Cord		Appelez-nous	-
*28648	3203550		Plug-button			Immediately	$ 15.22
*28649	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*28650	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*28651	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*28652	5303314107		Harness-wiring, Main		Appelez-nous	-
*28653	316088001		Fuse, Thermal Cutout		Appelez-nous	-
18A	5303015361		Latch-door, Bimetal		Appelez-nous	-
18B	3131593		Shield, Latch Top (not Illustrated)		Appelez-nous	-
20A	3203218		Knob-latch		Appelez-nous	-
20B	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
22A	08067781		Switch-latch		Appelez-nous	-
22B	08067978		Stud, Spacer (not Illustrated)		Appelez-nous	-
46A	5303208642		Tube-post Lh		Appelez-nous	-
46B	5303208643		Tube-post, Rh (not Illustrated)		Appelez-nous	-
5A	5303203397		Screw-leveling				$ 14.49
5B	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5C	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14
5D	5303322477		Bracket, Anti-tip, Rh (not Illustrated)		Appelez-nous	-
5E	5303322478		Bracket, Anti-tip, Lh (not Illustrated)		Appelez-nous	-
62A	5303935061		Terminal Block		Appelez-nous	-
62B	316205500		Nut, Hex, 10-32 (not Illustrated)   (Replaces: 5303308427)				$ 11.34
