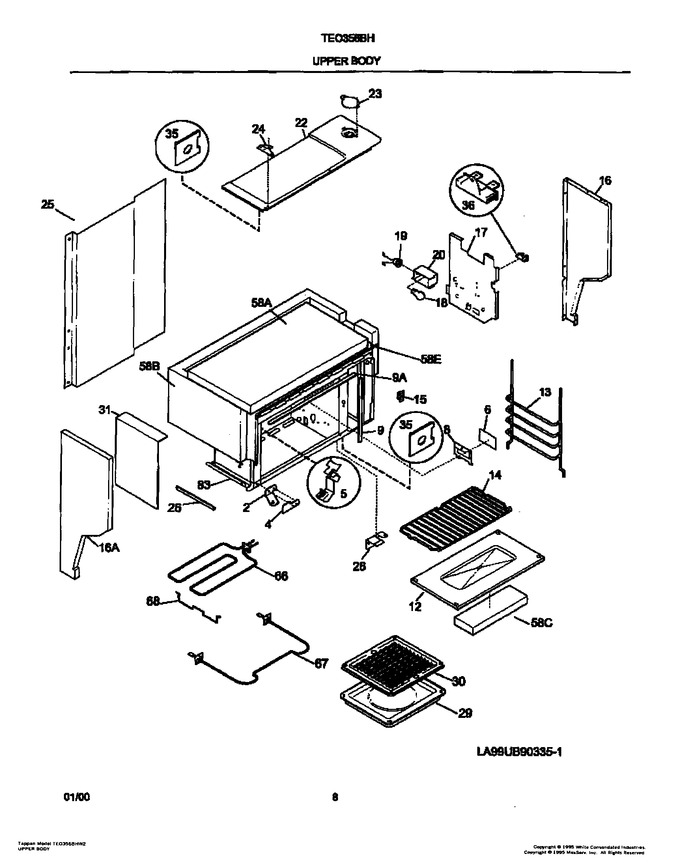

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303051166		Hinge-oven Door		Appelez-nous	-
4	08011665		Plate-bottom Hinge		Appelez-nous	-
5	5303284616		Clip-thermo Bulb				$ 9.86
6	08011668		Glass-oven Light Lens		Appelez-nous	-
8	08011669		Cover-light, Upper		Appelez-nous	-
9	316024200		Seal-oven Door		Appelez-nous	-
9	316024201		Seal-oven Door		Appelez-nous	-
12	317238902		Bottom-oven   (Replaces: 318109901)		Appelez-nous	-
13	5303290121		Glide		Appelez-nous	-
14	08011675		Rack-oven, Flat		Appelez-nous	-
15	318090310		Latch-door   (Replaces: 318090300)			Immediately	$ 44.61
16	318025902		Panel-bodyside, Almond, Rh		Appelez-nous	-
16	318025912		Panel-bodyside,almond ,lh		Appelez-nous	-
17	5303208706		Shield-wool		Appelez-nous	-
18	3201908		Lamp-oven Light		Appelez-nous	-
19	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
20	5303290105		Box & Wires Assy		Appelez-nous	-
22	5303290177		Panel-top, Upper		Appelez-nous	-
23	318036701		Cover-outlet		Appelez-nous	-
24	5303290130		Hinge-oven Door, Upper Oven		Appelez-nous	-
25	5303290095		Back-main		Appelez-nous	-
26	5303290094		Stiffener		Appelez-nous	-
28	316012800		Strike-door		Appelez-nous	-
29	318138601		Pan-broiler		Appelez-nous	-
30	318038201		Insert-broiler Pan		Appelez-nous	-
31	3131620		Shield-heat		Appelez-nous	-
35	5303290119		Fastener		Appelez-nous	-
58	318132603		Insulation		Appelez-nous	-
58	3204440		Reflector, Aluminum Foil		Appelez-nous	-
58	318132605		Insulation		Appelez-nous	-
58	318132604		Insulation		Appelez-nous	-
66	318050900		Element-broil,upper		Appelez-nous	-
67	318050800		Element-bake		Appelez-nous	-
68	3015584		Support-element, Upper		Appelez-nous	-
83	318109610		Liner-oven,comp.		Appelez-nous	-
