SELECT A DIAGRAM

01 - Cover


02 - Splasher


03 - Upper Body

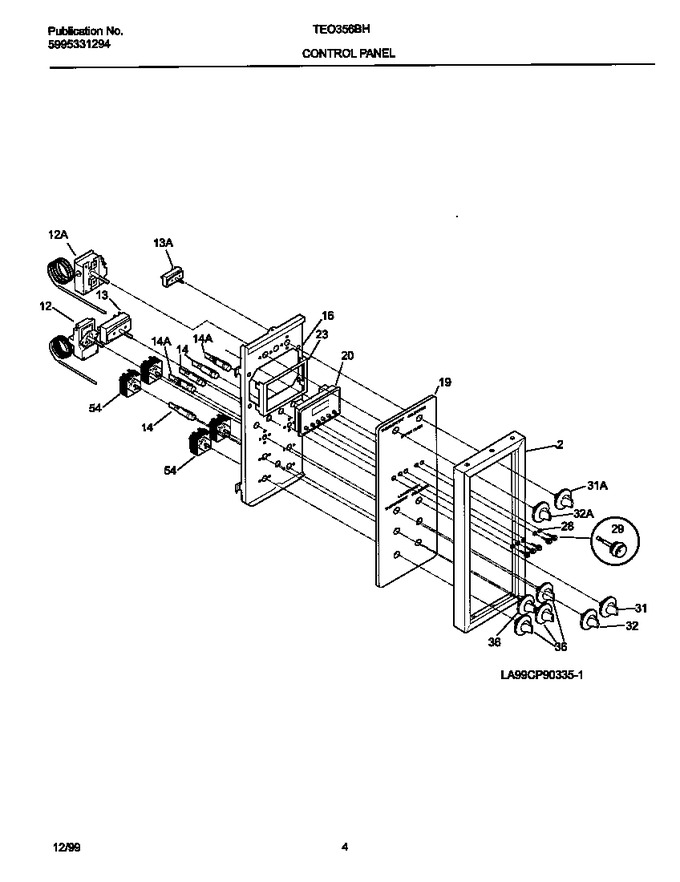

04 - Lower Body


05 - Control Panel


06 - Top/drawer


07 - Lower Door


08 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	316013200		Trim-frame		Appelez-nous	-
12	5303051320		Thermostat-oven Lower		Appelez-nous	-
12	5303202782		Thermostat-oven Upper		Appelez-nous	-
13	3051316		Switch-selector, 5 Pos, Upper		Appelez-nous	-
13	5303051315		Switch-selector, Lower		Appelez-nous	-
14	5303091462		Light/lamp,indicator ,clear ,250 V ,(2)		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
16	318005801		Plate, Instrument Mtg		Appelez-nous	-
19	318001702		Glass Control Panel		Appelez-nous	-
20	318004600		Clock-timer		Appelez-nous	-
23	318171801		Bracket-timer		Appelez-nous	-
28	318147300		Foam Spacer Neoprene		Appelez-nous	-
29	318036210		Knob Clock Black,temp Control		Appelez-nous	-
31	316019168		Knob-selector		Appelez-nous	-
31	318165310		Knob Selector Switch,upper Selector		Appelez-nous	-
32	316019166		Knob-thermostat, Lower		Appelez-nous	-
32	316019163		Knob-thermostat, Upper		Appelez-nous	-
36	318017010		Knob-control		Appelez-nous	-
54	5303935086		Switch-surface Unit, (4)   (Replaces: 318120504)			Immediately	$ 51.95
*67289	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88

    View Diagram in Separate Window       Print Part List
