SELECT A DIAGRAM

01 - Cover


02 - Splasher


03 - Upper Body

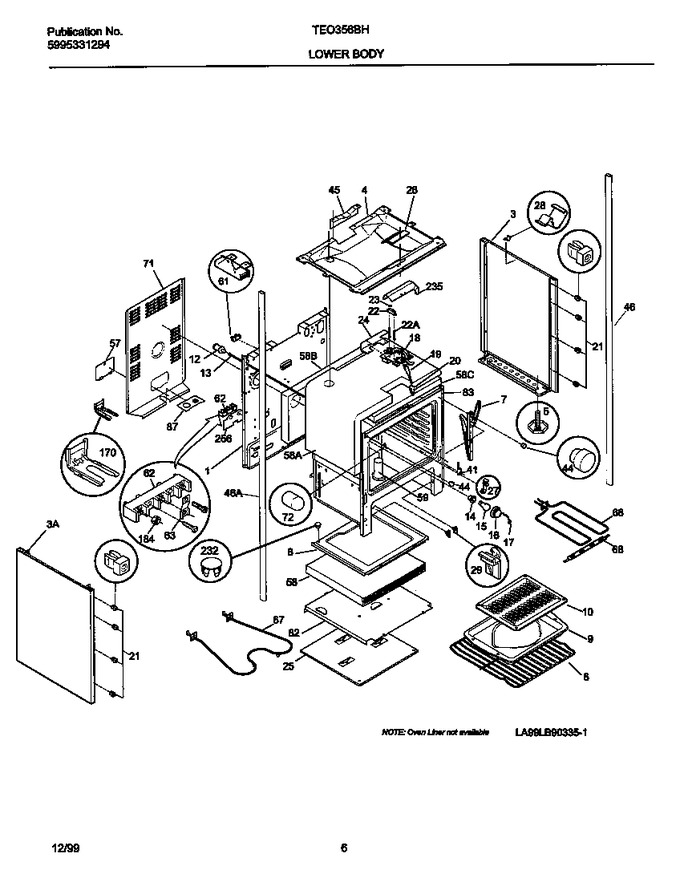

04 - Lower Body


05 - Control Panel


06 - Top/drawer


07 - Lower Door


08 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
3	316081036		Panel Control,almond ,rh		Appelez-nous	-
4	5303271658		Burner Box		Appelez-nous	-
5	316107300		Screw-levelling		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	318138800		Pan-broiler		Appelez-nous	-
10	318126400		Insert-broiler Pan		Appelez-nous	-
12	316027702		Switch-oven Light		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	316116400		Socket-light			Immediately	$ 56.10
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	5303015361		Latch-door, Bimetal		Appelez-nous	-
19	5303131357		Handle-latch				$ 37.33
20	3203218		Knob-latch		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
22	08067978		Stud Spacer		Appelez-nous	-
22	08067781		Switch-latch		Appelez-nous	-
23	08067776		Fastener-push-on		Appelez-nous	-
25	5303289914		Shield-heat Lower		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
27	08067754		Clip-thermo Bulb		Appelez-nous	-
28	3051367		Clip-wire		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
45	5303289854		Cover-flue		Appelez-nous	-
46	5303208642		Tube-post Lh		Appelez-nous	-
46	5303208643		Tube-post Rh		Appelez-nous	-
57	316081100		Cover,access		Appelez-nous	-
58	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
59	316073600		Tube-oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075103		Element-bake			Immediately	$ 42.36
68	316075300		Support-element, Broil		Appelez-nous	-
71	316015804		Shield-rear Wall		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
83	316054310		Liner Wrapper		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112005		Anti-tip Bracket   (Replaces: 316107200)			Immediately	$ 18.91
184	5303289902		Nut		Appelez-nous	-
232	3203550		Plug-button			Immediately	$ 15.22
235	3131593		Shield-latch, Top		Appelez-nous	-
*67281	316081037		Body Side Panel,almond ,lh		Appelez-nous	-
*67283	3131620		Shield-heat		Appelez-nous	-
*67284	316088001		Fuse, Thermal Cutout		Appelez-nous	-
*67285	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*67286	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
*67287	08067961		Fastener-power Cord		Appelez-nous	-
*67288	3131737		Washer-hinge,black				$ 5.59
15A	3201908		Lamp-oven Light		Appelez-nous	-
15B	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98

    View Diagram in Separate Window       Print Part List
