SELECT A DIAGRAM

01 - Cover


02 - Splasher

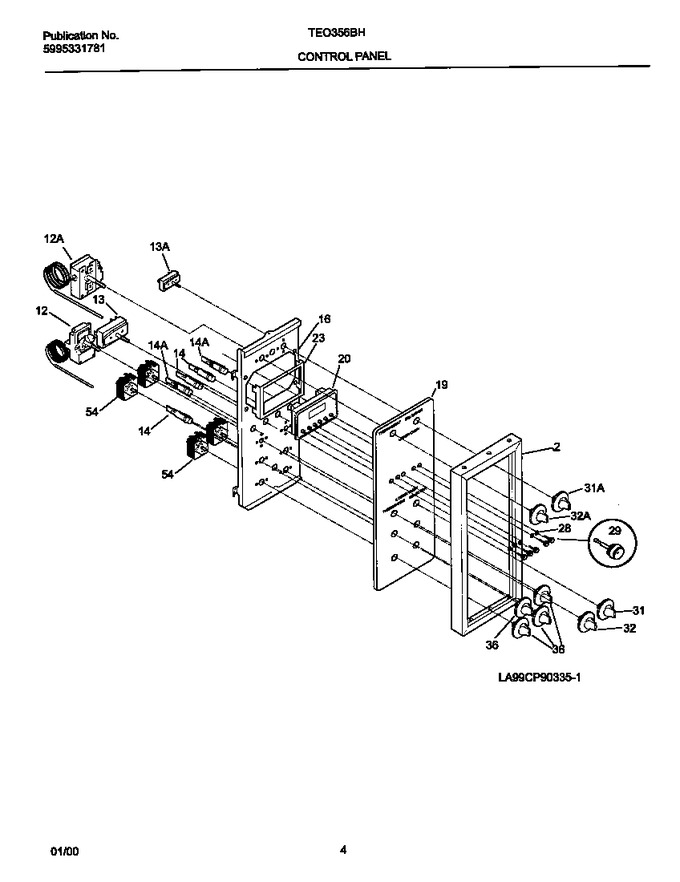

03 - Control Panel


04 - Lower Body


05 - Upper Body


06 - Top/drawer


07 - Lower Door


08 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318189400		Reflector,work Light		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3012947		Insulator, Light		Appelez-nous	-
5	5303290187		Receptacle		Appelez-nous	-
6	3051465		Trim Vent		Appelez-nous	-
7	3200527		Support-upper Oven,lh		Appelez-nous	-
7	3200526		Support-upper Oven, Rh		Appelez-nous	-
9	3200496		Glass-splasher		Appelez-nous	-
10	316012900		Panel-splasher-upper		Appelez-nous	-
11	316099800		Ballast-lamp		Appelez-nous	-
12	08067742		Thermostat-oven, Sc		Appelez-nous	-
12	5303202782		Thermostat-oven Upper		Appelez-nous	-
12	5303051320		Thermostat-oven Lower		Appelez-nous	-
13	3051316		Switch-selector, 5 Pos, Upper		Appelez-nous	-
13	5303051315		Switch-selector, Lower		Appelez-nous	-
13	3051348		Angle-s/c Bracket		Appelez-nous	-
14	08010549		Trim-splasher, Rh		Appelez-nous	-
14	5303091462		Light/lamp,indicator ,clear ,250 V ,(2)		Appelez-nous	-
14	5303269815		Trim-splasher,lh		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	318002800		Trim-splasher Filler		Appelez-nous	-
16	318005801		Plate, Instrument Mtg		Appelez-nous	-
17	318110400		Holder,starter				$ 52.29
18	5308068062		Starter,lamp				$ 30.46
19	318001702		Glass Control Panel		Appelez-nous	-
20	318004600		Clock-timer		Appelez-nous	-
23	318171801		Bracket-timer		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
28	318147300		Foam Spacer Neoprene		Appelez-nous	-
29	318036210		Knob Clock Black,temp Control		Appelez-nous	-
31	318165310		Knob Selector Switch,upper Selector		Appelez-nous	-
31	316019168		Knob-selector		Appelez-nous	-
32	316019163		Knob-thermostat, Upper		Appelez-nous	-
32	316019166		Knob-thermostat, Lower		Appelez-nous	-
36	318017010		Knob-control		Appelez-nous	-
40	316062346		Panel-manifold		Appelez-nous	-
54	5303935086		Switch-surface Unit, (4)   (Replaces: 318120504)			Immediately	$ 51.95
99	5303304544		Spacer		Appelez-nous	-
113	318124800		Shield-		Appelez-nous	-
114	318124700		Hidden Wires Shield		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
