SELECT A DIAGRAM

01 - Cover


02 - Splasher


03 - Control Panel

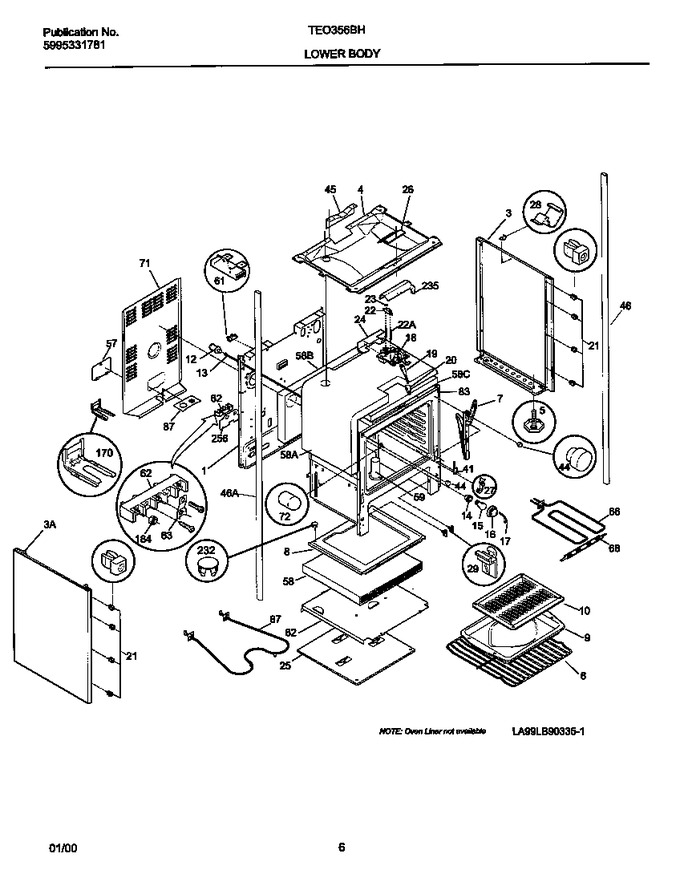

04 - Lower Body


05 - Upper Body


06 - Top/drawer


07 - Lower Door


08 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
4	5303271658		Burner Box		Appelez-nous	-
5	316107300		Screw-levelling		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	318138800		Pan-broiler		Appelez-nous	-
10	318126400		Insert-broiler Pan		Appelez-nous	-
14	316116400		Socket-light			Immediately	$ 56.10
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
15	316442301		Element-surface,large-8``   (Replaces: 5303012223)			Immediately	$ 44.39
15	318372211		Element-surface,small-6``   (Replaces: 08067762)			Immediately	$ 45.14
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
16	5303013511		Main Top (white)		Appelez-nous	-
17	316087500		Retainer,lens				$ 56.70
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	5303015361		Latch-door, Bimetal		Appelez-nous	-
19	5303131357		Handle-latch				$ 37.33
19	316048413		Pan-surface Element,chrome ,large/8 Inch,(2)			Immediately	$ 9.85
19	316048414		Pan-surface Element,chrome ,small/6 Inch,(2)			Immediately	$ 16.11
20	3203218		Knob-latch		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
22	08067978		Stud Spacer		Appelez-nous	-
22	08067781		Switch-latch		Appelez-nous	-
23	08067776		Fastener-push-on		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
27	08067754		Clip-thermo Bulb		Appelez-nous	-
28	5308067828		Medallion, Surface Element		Appelez-nous	-
28	3051367		Clip-wire		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
46	5303208643		Tube-post Rh		Appelez-nous	-
46	5303208642		Tube-post Lh		Appelez-nous	-
57	316081100		Cover,access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
58	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
59	316073600		Tube-oven Vent		Appelez-nous	-
60	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	318050900		Element-broil,upper		Appelez-nous	-
67	318050800		Element-bake		Appelez-nous	-
68	316075300		Support-element, Broil		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112005		Anti-tip Bracket   (Replaces: 316107200)			Immediately	$ 18.91
184	5303289902		Nut		Appelez-nous	-
232	3203550		Plug-button			Immediately	$ 15.22
256	316085600		Insulator		Appelez-nous	-
*30361	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
235A	3051413		Shield-latch		Appelez-nous	-
235B	3131593		Shield-latch, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
