SELECT A DIAGRAM

01 - Cover


02 - Splasher


03 - Control Panel


04 - Lower Body


05 - Upper Body


06 - Top/drawer


07 - Lower Door


08 - Upper Door

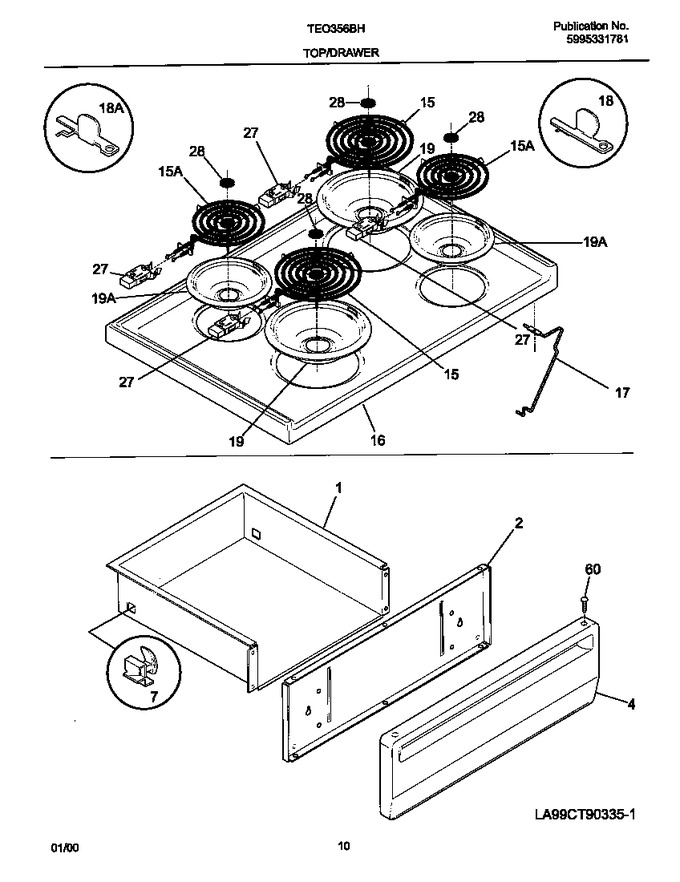

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
12	5303051320		Thermostat-oven Lower		Appelez-nous	-
12	5303202782		Thermostat-oven Upper		Appelez-nous	-
13	3051316		Switch-selector, 5 Pos, Upper		Appelez-nous	-
13	5303051315		Switch-selector, Lower		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
14	5303091462		Light/lamp,indicator ,clear ,250 V ,(2)		Appelez-nous	-
15	318372211		Element-surface,small-6``   (Replaces: 08067762)			Immediately	$ 45.14
15	316442301		Element-surface,large-8``   (Replaces: 5303012223)			Immediately	$ 44.39
16	318005801		Plate, Instrument Mtg		Appelez-nous	-
16	5303013511		Main Top (white)		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048414		Pan-surface Element,chrome ,small/6 Inch,(2)			Immediately	$ 16.11
19	316048413		Pan-surface Element,chrome ,large/8 Inch,(2)			Immediately	$ 9.85
19	318001702		Glass Control Panel		Appelez-nous	-
20	318004600		Clock-timer		Appelez-nous	-
23	318171801		Bracket-timer		Appelez-nous	-
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5308067828		Medallion, Surface Element		Appelez-nous	-
28	318147300		Foam Spacer Neoprene		Appelez-nous	-
29	318036210		Knob Clock Black,temp Control		Appelez-nous	-
31	318165310		Knob Selector Switch,upper Selector		Appelez-nous	-
31	316019168		Knob-selector		Appelez-nous	-
32	316019163		Knob-thermostat, Upper		Appelez-nous	-
32	316019166		Knob-thermostat, Lower		Appelez-nous	-
36	318017010		Knob-control		Appelez-nous	-
54	5303935086		Switch-surface Unit, (4)   (Replaces: 318120504)			Immediately	$ 51.95
60	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*30361	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
