View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard

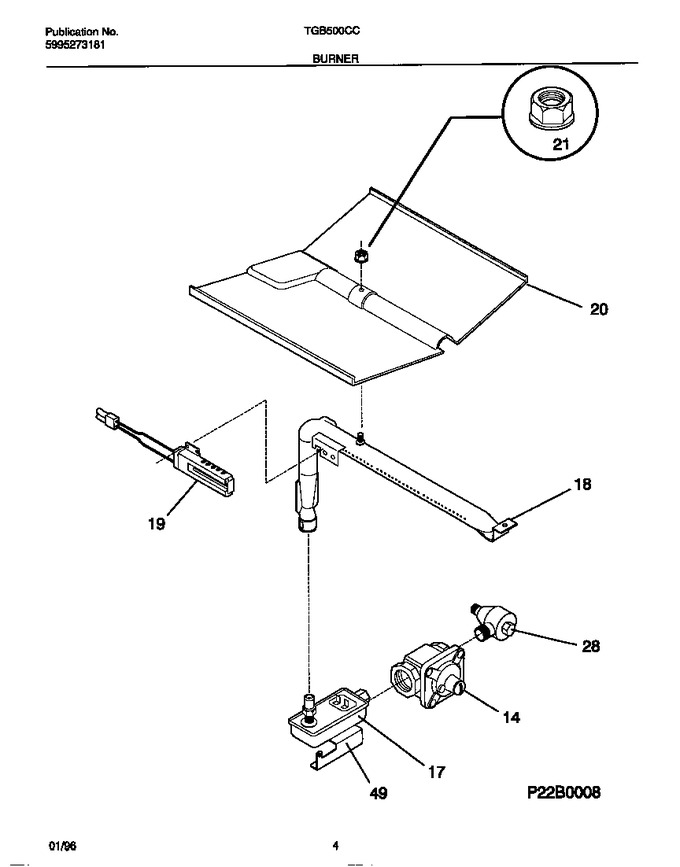

03 - Burner
04 - Body
05 - Drawer/door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5303210167 | Regulator,pressure |
|
- | |||||
| 17 | 3203702 | Valve-safety |
|
- | |||||
| 18 | 5303210787 | Burner-oven |
|
- | |||||
| 19 | 5303308468 | Ignitor-oven |
|
- | |||||
| 20 | 5303308480 | Baffle-oven Burner |
|
- | |||||
| 21 | 3051038 | Nut |
|
- | |||||
| 28 | 5303295305 | Valve-shut Off |
|
- | |||||
| 49 | 5303308469 | Bracket,safety Valve |
|
- |
