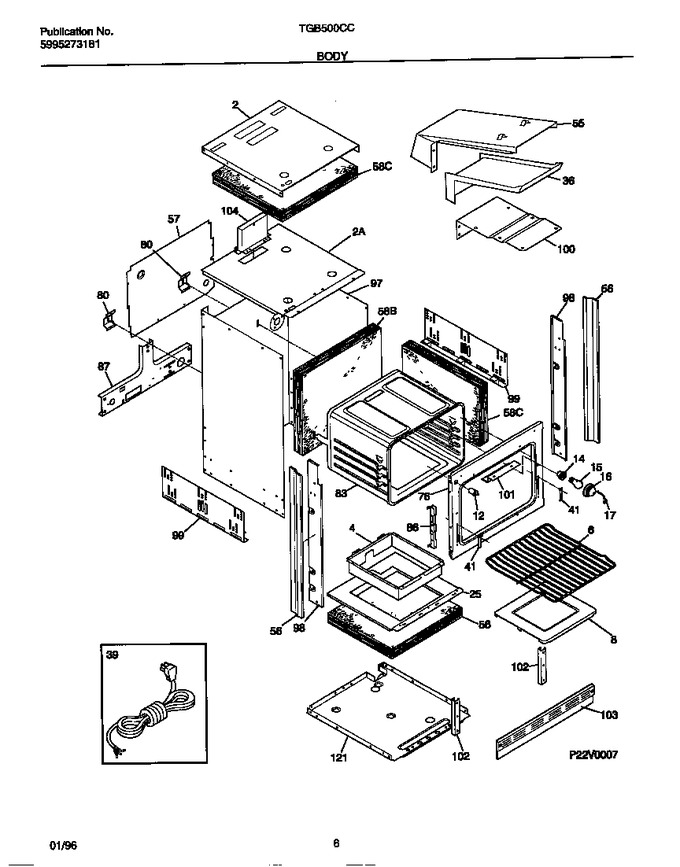

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3203690 | Wrapper, Top |
|
- | |||||
| 2 | 5303305035 | Shield, Oven Bottom |
|
- | |||||
| 4 | 5303280375 | Box-oven Burner |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 8 | 5303296327 | Panel-oven Bottom |
|
- | |||||
| 12 | 5301314211 | Switch-oven Light |
|
$ 95.29 | |||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 25 | 5303210706 | Shield-insulation, Base |
|
- | |||||
| 36 | 3203725 | Flue |
|
- | |||||
| 39 | 5303308453 | Cord,electric Power |
|
- | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 55 | 3204210 | Shield-flue Cover |
|
- | |||||
| 56 | 5303280347 | Trim-bodyside |
|
- | |||||
| 57 | 5303308476 | Cover-access |
|
- | |||||
| 58 | 5303210707 | Insulation, Top & Sides |
|
- | |||||
| 58 | 5303304703 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303280377 | Insulation, Oven Bottom |
|
- | |||||
| 76 | 5303296866 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 5303296968 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 87 | 5303308475 | Bracket-safety Valve |
|
- | |||||
| 97 | 5303210686 | Wrapper, Back & Sides |
|
- | |||||
| 98 | 3203664 | Trim-side, Inner, Rh (not Illustrated) |
|
- | |||||
| 98 | 3203665 | Trim-side, Inner, Lh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 100 | 5303302715 | Shield,flue ,bottom |
|
- | |||||
| 101 | 5303308474 | Shield,vent |
|
- | |||||
| 102 | 3203688 | Support,oven Front |
|
- | |||||
| 103 | 5303316735 | Trim-base |
|
- | |||||
| 103 | 5303308473 | Spacer (not Illustrated) |
|
- | |||||
| 104 | 3203730 | Adapter-flue |
|
- | |||||
| 121 | 5303305036 | Wrapper-base |
|
- | |||||
| *52560 | 5303300421 | Cover-capillary |
|
- | |||||
| *52561 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| *52562 | 3201632 | Spacer-oven |
|
- |
