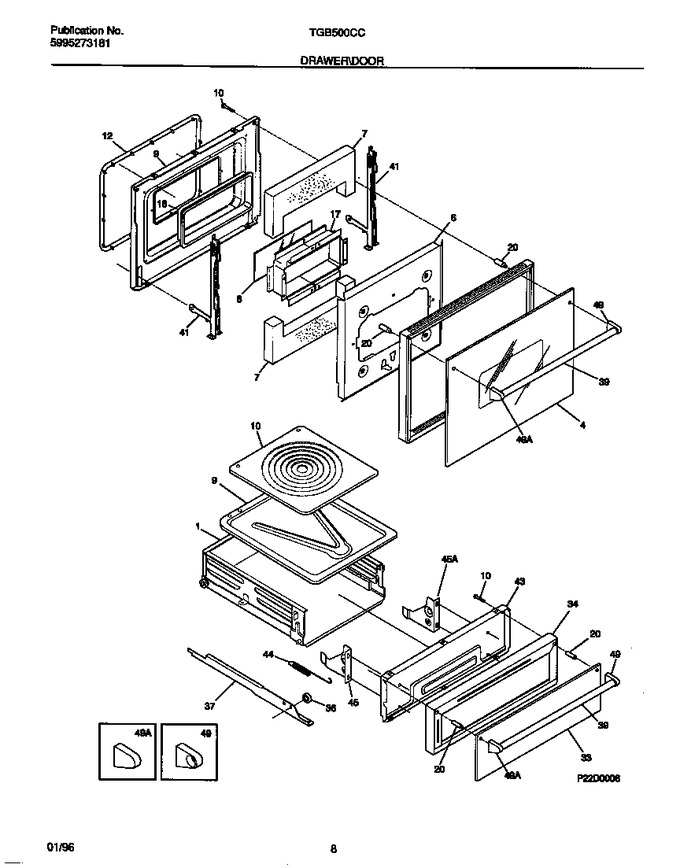

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door		Appelez-nous	-
4	3202420		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
8	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
9	5303296860		Liner-oven Door		Appelez-nous	-
10	5303282419		Screw-handle (2)		Appelez-nous	-
12	5303316768		Seal-oven Door		Appelez-nous	-
17	5303212864		Spacer-glass		Appelez-nous	-
18	3016338		Seal-rope				$ 43.20
20	5303210003		Spacer-door, (2)		Appelez-nous	-
33	3203715		Glass-drawer, Front		Appelez-nous	-
34	318116000		Panel-inner Drw		Appelez-nous	-
35	5303286742		Drawer-broiler		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
37	3203723		Rail,drawer ,lh		Appelez-nous	-
37	3203722		Rail-drawer Rh (not Illustrated)		Appelez-nous	-
39	5303316748		Screw-handle, (2) (not Illustrated)		Appelez-nous	-
39	318040201		Handle-door, Oven		Appelez-nous	-
41	3202464		Hinge-oven Door		Appelez-nous	-
43	5303296966		Liner-broiler Door		Appelez-nous	-
44	5303131030		Spring-broiler		Appelez-nous	-
45	5303308471		Hinge-broiler, Lh		Appelez-nous	-
45	5303308472		Hinge-broiler, Rh		Appelez-nous	-
46	5303286736		Pan Broiler		Appelez-nous	-
47	5303017712		Insert-broiler Pan		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
*52563	3202113		Button, Plug		Appelez-nous	-
*52564	5303212886		Tape-inner Door		Appelez-nous	-
*52565	5303296967		Panel Broiler Drawer Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
