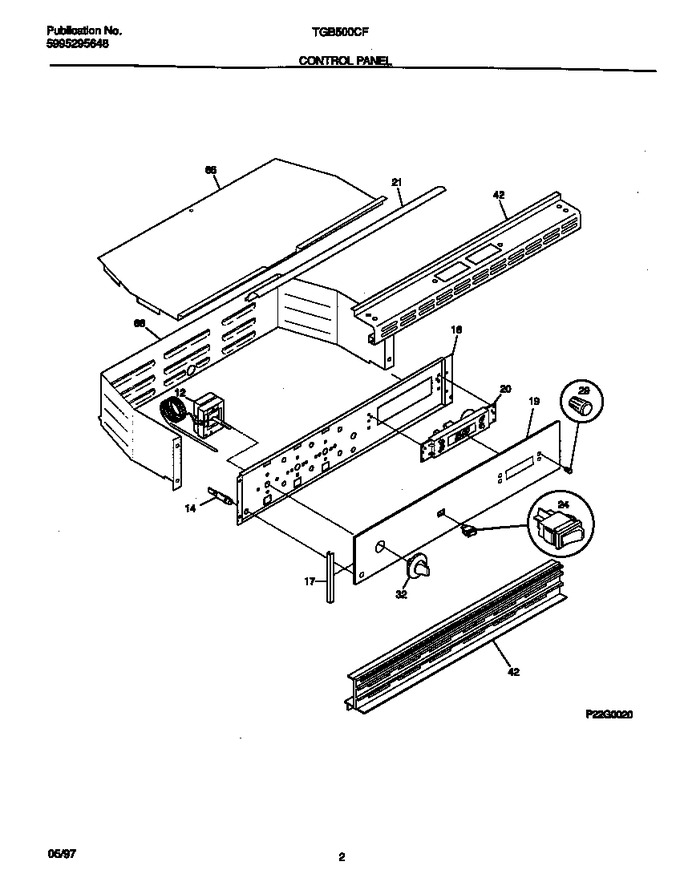

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318027301		Trim-vent, Black		Appelez-nous	-
12	318058900		Thermostat-oven		Appelez-nous	-
14	318044602		Light/lamp, Indicator, Red		Appelez-nous	-
16	318117800		Plate, Instrument Mtg		Appelez-nous	-
17	5303280339		End Cap, Black, Lh		Appelez-nous	-
17	5303280338		End Cap, Black, Rh (not Illustrated)		Appelez-nous	-
19	318000116		Panel-control, Glass		Appelez-nous	-
20	316065400		Clock/timer		Appelez-nous	-
21	318056901		Trim-canopy/shield, Black				$ 293.32
24	316090900		Switch-light/lamp				$ 95.18
24	318110700		Bracket-light Switch (not Illustrated)		Appelez-nous	-
29	5303311122		Button-clock		Appelez-nous	-
32	318016814		Knob-thermostat		Appelez-nous	-
42	318028020		Trim-vent		Appelez-nous	-
65	5303308466		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
*11320	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*11321	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*11322	5303280380		Seal, Sponge		Appelez-nous	-
*11323	5303300414		Spacer, Cork & Rubber				$ 13.18
*11324	5303320666		Spacer-bracket Relay		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
