01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door

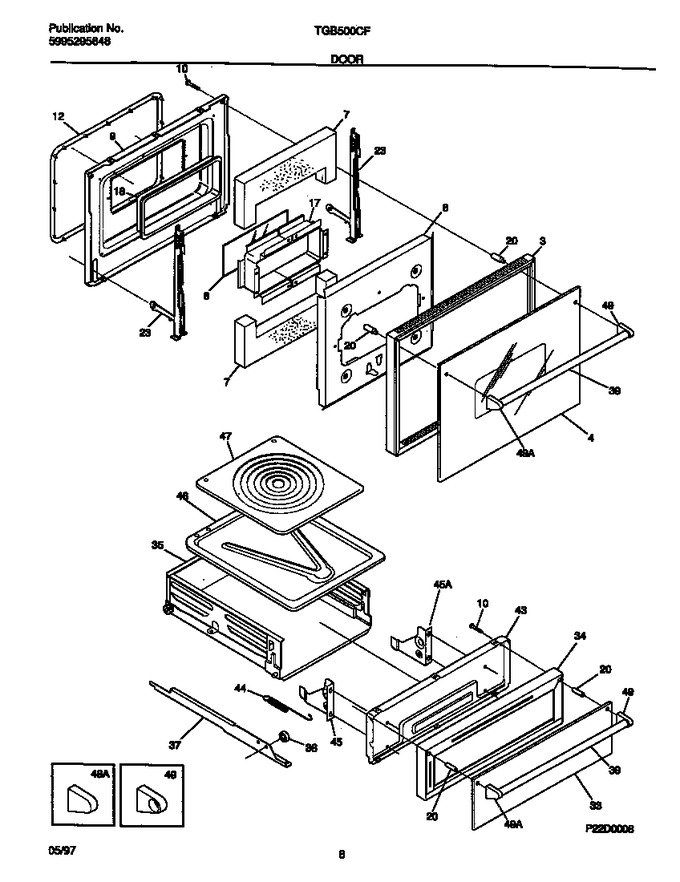

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door, Black		Appelez-nous	-
4	3202420		Glass-oven Door, Upper Oven		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
8	5303323828		Glass-oven Door, Inner		Appelez-nous	-
9	318048400		Liner-oven Door		Appelez-nous	-
10	5303316748		Screw-handle, (2)		Appelez-nous	-
12	5303316768		Seal-oven Door, Lower Oven		Appelez-nous	-
17	318162601		Retainer-glass		Appelez-nous	-
18	3016338		Seal-rope, Lower Oven				$ 43.20
20	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
23	3202464		Hinge-oven Door, Lower		Appelez-nous	-
23	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
33	3203715		Glass-drawer, Front		Appelez-nous	-
34	318116000		Panel-inner Drw		Appelez-nous	-
35	318107000		Drawer,broiler		Appelez-nous	-
35	318136000		Panel, Broiler Drawer, Bottom (not Illustrated)		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
37	3203722		Rail-drawer Rh (not Illustrated)		Appelez-nous	-
37	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl (not Illustrated)   (Replaces: 5303308458)				$ 14.18
37	3203723		Rail,drawer ,lh		Appelez-nous	-
39	318040201		Handle-door, Black, Oven		Appelez-nous	-
43	318107800		Liner,broiler Door		Appelez-nous	-
44	5303131030		Spring-broiler		Appelez-nous	-
45	5303308471		Hinge-broiler, Lh		Appelez-nous	-
45	5303308472		Hinge-broiler, Rh		Appelez-nous	-
46	318126200		Pan-broiler		Appelez-nous	-
47	318126300		Insert-broiler Pan		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
*11343	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*11344	5303300414		Spacer, Cork & Rubber				$ 13.18
