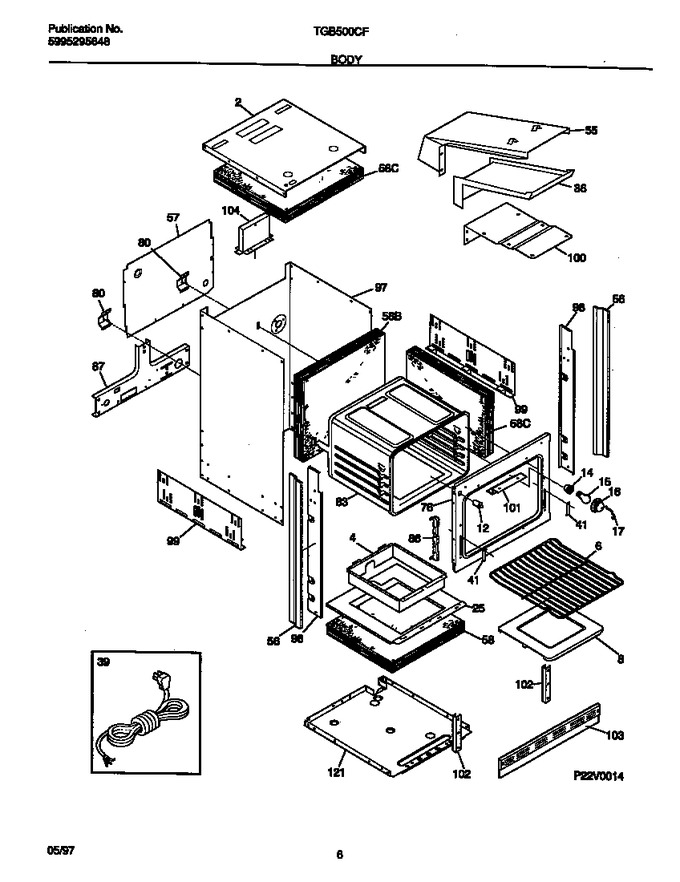

04 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3203690		Wrapper, Top		Appelez-nous	-
4	318161500		Box-oven Burner		Appelez-nous	-
6	318345216		Rack-oven   (Replaces: 5303296873)				$ 103.90
8	318121400		Panel-oven Bottom		Appelez-nous	-
12	5301314211		Switch-light				$ 95.29
14	08011171		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light, Large/small, Oven		Appelez-nous	-
16	5304524341		Glass-oven Light Lens, Large/small, Oven   (Replaces: 3201911)			Immediately	$ 14.18
17	3204483		Retainer-lens, Oven		Appelez-nous	-
25	5303210706		Shield-insulation, Base		Appelez-nous	-
36	3203725		Flue		Appelez-nous	-
39	5303308453		Cord,electric Power		Appelez-nous	-
41	3019063		Retainer-door		Appelez-nous	-
55	3204210		Shield-flue Cover		Appelez-nous	-
56	318145508		Trim-bodyside, (2)		Appelez-nous	-
56	5303320422		Screw,6-20 X 5/16 ,side Trim ,(4)				$ 12.71
57	5303308476		Shield-rear Wall		Appelez-nous	-
58	5303280377		Insulation, Oven Bottom		Appelez-nous	-
58	5303304703		Insulation, Oven Back		Appelez-nous	-
58	5303210707		Insulation, Top & Sides		Appelez-nous	-
76	318056120		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
83	318089400		Liner-oven Assy		Appelez-nous	-
86	3201631		Channel, Hinge				$ 58.22
87	5303308475		Bracket-safety Valve		Appelez-nous	-
97	318066800		Wrapper, Back & Sides		Appelez-nous	-
98	318029400		Trim-side, Inner, Rh (not Illustrated)		Appelez-nous	-
98	318029401		Trim-side, Inner, Lh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
100	5303302715		Shield,flue ,bottom		Appelez-nous	-
101	5303308474		Shield,vent		Appelez-nous	-
102	3203688		Support,oven Front		Appelez-nous	-
103	5303316735		Trim-base		Appelez-nous	-
103	5303308473		Spacer (not Illustrated)		Appelez-nous	-
104	3203730		Adapter-flue		Appelez-nous	-
121	318145001		Wrapper-base		Appelez-nous	-
*11329	5303305035		Shield, Oven Bottom		Appelez-nous	-
*11330	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*11331	154079601		Nut   (Replaces: 3201885)				$ 0.41
*11332	08002868		Screw 10 X 24 X 1/2				$ 14.18
*11333	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive			Immediately	$ 9.36
*11334	5303210705		Angle-burner Box		Appelez-nous	-
*11335	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*11336	5303300195		Screw, 10-32 X 3/8, Terminal Block (2)		Appelez-nous	-
*11337	5303300421		Cover-capillary		Appelez-nous	-
*11338	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*11339	318144700		Clip-thermo Bulb		Appelez-nous	-
*11340	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
*11341	3016303		Clip-insulator Retainer		Appelez-nous	-
*11342	3201632		Spacer-oven		Appelez-nous	-
