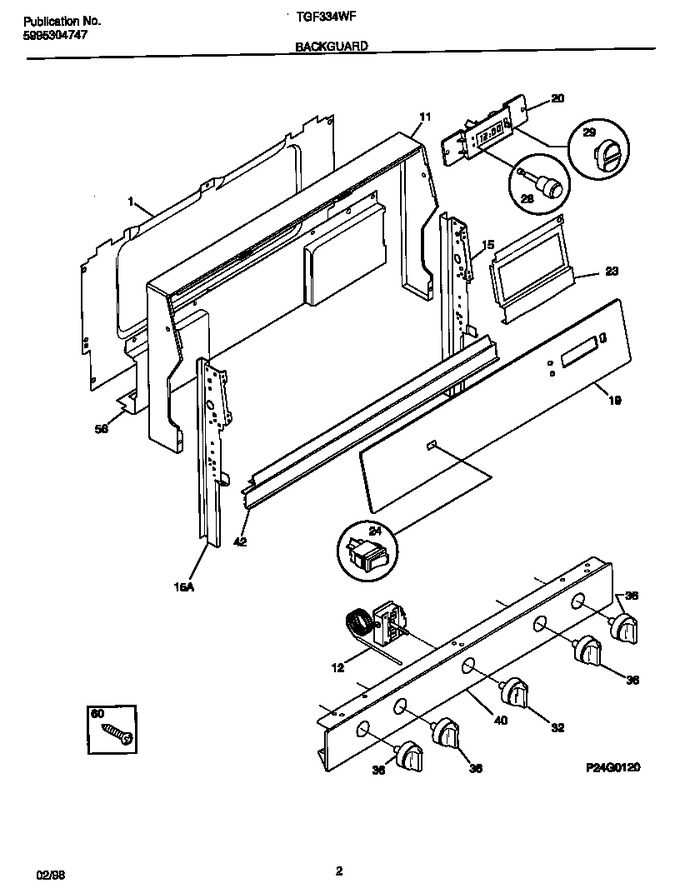

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316061847		Trim-wrapper, White		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316082626		Panel-control, Metal		Appelez-nous	-
20	316096001		Clock/timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
28	316017303		Button-clock, White				$ 53.76
29	316028402		Button-selector, Clock/timer, White				$ 48.72
32	316022916		Knob-thermostat		Appelez-nous	-
36	316023021		Knob-control, White, (4)		Appelez-nous	-
40	316062354		Panel-manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*50200	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
