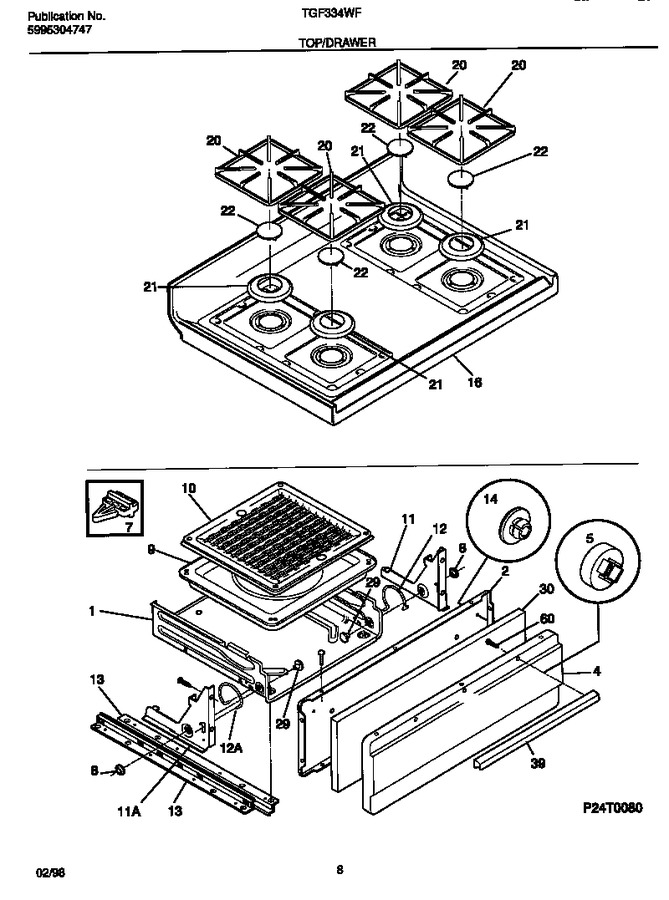

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018608		Drawer-broiler		Appelez-nous	-
2	3202803		Liner, Broiler Door		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3018610		Glide-broiler				$ 29.40
8	3131386		Nut, Push-on, (2)		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
11	316066301		Bracket-hinge, Broiler Rh		Appelez-nous	-
11	316066300		Bracket-hinge, Broiler Lh		Appelez-nous	-
12	3018618		Spring-broiler, Lh		Appelez-nous	-
12	3018619		Spring-broiler, Rh		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303301546		Main Top, White		Appelez-nous	-
20	316085205		Grate, Gray, (4)		Appelez-nous	-
21	316011308		Trim Ring-burner		Appelez-nous	-
22	316010905		Cap,burner ,gloss Gray ,(4)				$ 56.91
29	3018614		Pin-hinge		Appelez-nous	-
30	5303131258		Insulation, Broiler Drawer		Appelez-nous	-
39	316019505		Handle-drawer, White				$ 82.27
60	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
*50213	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*50214	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*50215	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*50216	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*50217	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
