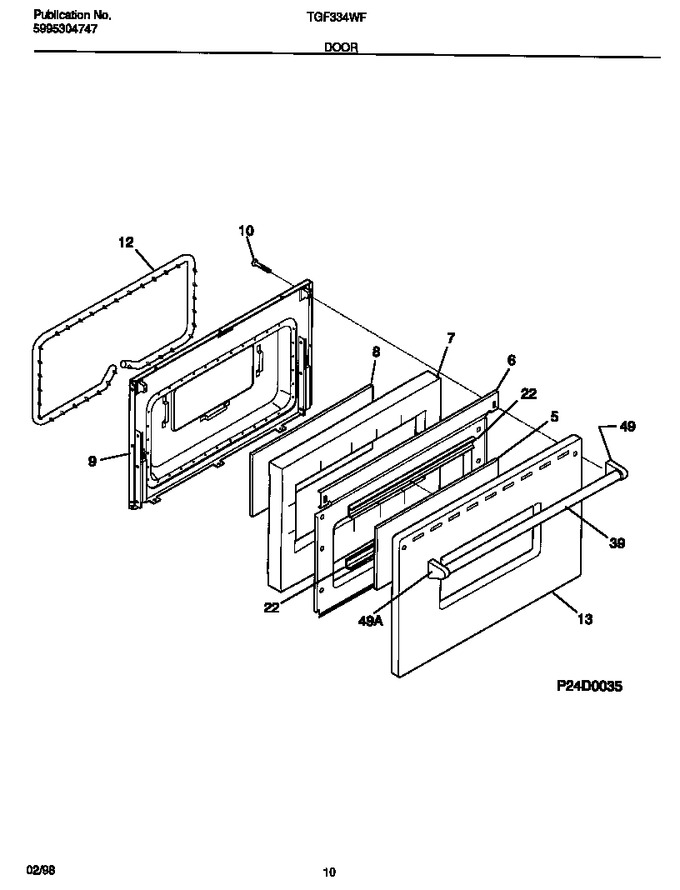

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316050300		Glass, Oven Door, White, Front		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass-oven Door, Airwash				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3017081		Panel, Oven Door, White		Appelez-nous	-
22	5303272476		Retainer,glass ,(2) ,angle		Appelez-nous	-
39	316008305		Handle-door, White, Oven		Appelez-nous	-
49	5303307194		End Cap-handle, White, Rh		Appelez-nous	-
49	5303307195		End Cap-handle, White, Lh		Appelez-nous	-
*50218	316008401		Washer,3/4 X 1/4 ,steel ,(2)				$ 11.34
*50219	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*50220	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*50221	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*50222	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
