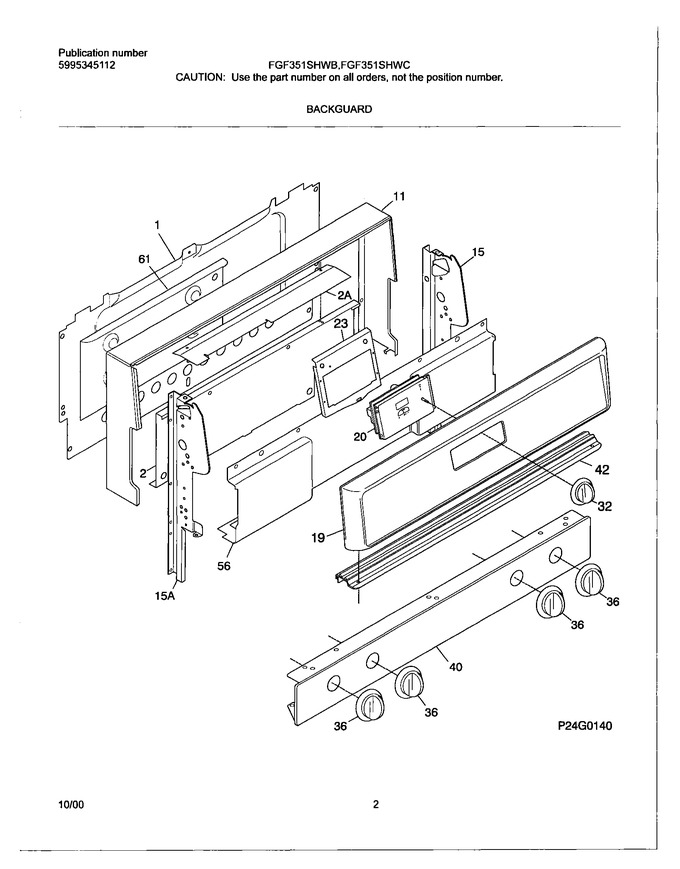

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
11	316061856		Trim-wrapper,black ,textured		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	5303935174		End Cap,black ,rh & Lh		Appelez-nous	-
19	316115011		Panel-control,metal ,black ,19		Appelez-nous	-
23	316131501		Bracket-timer		Appelez-nous	-
32	316101400		Knob-thermostat		Appelez-nous	-
36	316109512		Knob-top Valve,black				$ 62.27
40	316009268		Panel-manifold,black		Appelez-nous	-
42	316055202		Extrusion, Bottom Trim		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
61	316107800		Shield,flue		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
2A	316053803		Shield-backguard,inner Top		Appelez-nous	-
F20	316101100		Clock/timer,trimline		Appelez-nous	-
NI	316021109		Screw,semi Gimlet ,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316101521		Overlay-clock		Appelez-nous	-
NI	316001465		Wiring Harness,backguard		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
