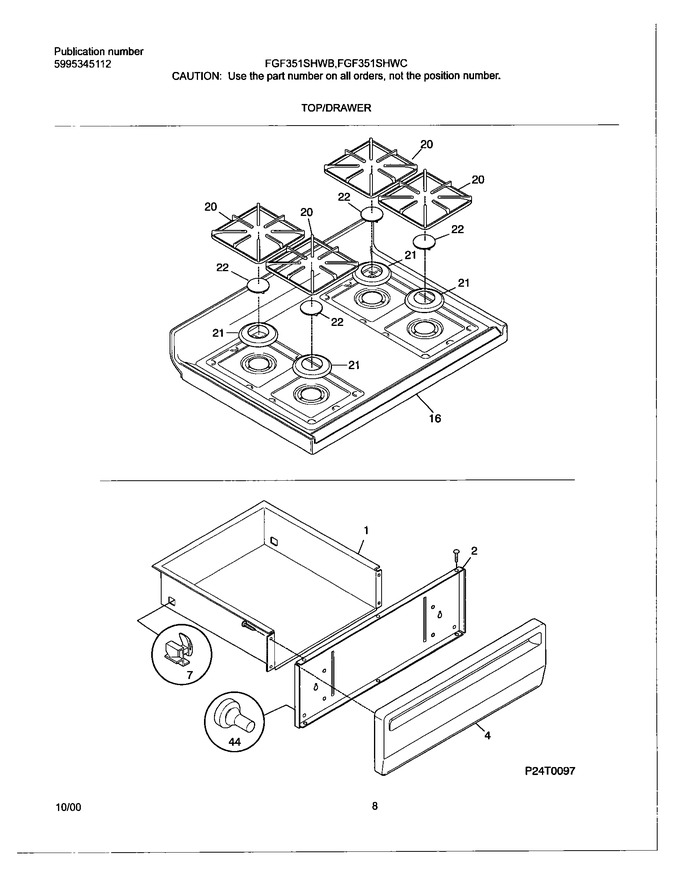

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	5303288582		Shield-drawer,galv Steel ,front Panel		Appelez-nous	-
4	316084405		Panel-drawer Front,white		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303301546		Main Top, White		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
44	3131903		Bumper				$ 55.36
F20	316088900		Grate, Black, (4)		Appelez-nous	-
F22	316010901		Cap-burner,gloss Black ,small ,(4)				$ 69.01
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,semi Gimlet ,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
