SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer

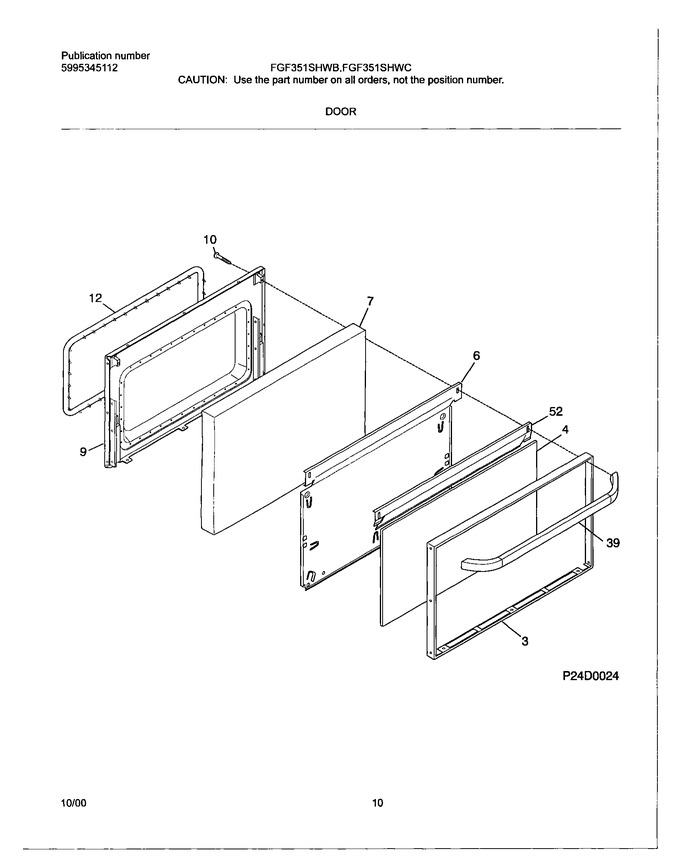

11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089001		Glass-oven Door, Black, Outer		Appelez-nous	-
6	316091402		Shield-wool		Appelez-nous	-
7	316076404		Insulation, Oven Door		Appelez-nous	-
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
39	5304529996		Handle-door, Black, Oven   (Replaces: 316091114)				$ 156.11
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
F12	5303131601		Seal-oven Door				$ 374.63
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	316132100		Spacer,sponge Pad		Appelez-nous	-
NI	316021109		Screw,semi Gimlet ,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
