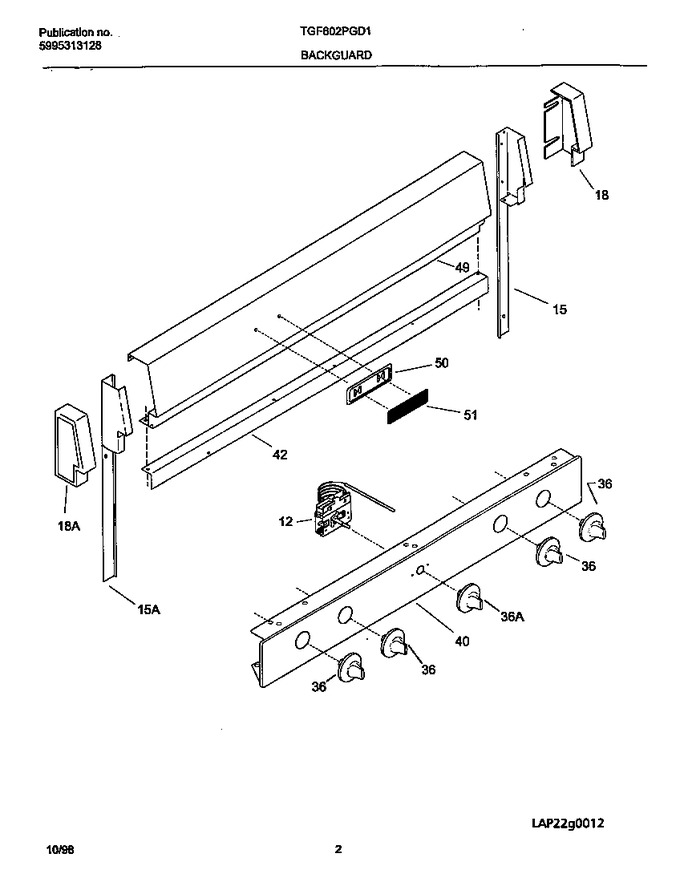

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 318059206 | Thermostat |
|
- | |||||
| 15 | 318162100 | Support-backguard,rh |
|
- | |||||
| 15 | 318162101 | Support-backguard,lh |
|
- | |||||
| 18 | 318172601 | End Cap,black |
|
- | |||||
| 18 | 318172600 | End Cap,black |
|
- | |||||
| 36 | 318016816 | Knob-control |
|
- | |||||
| 36 | 318016209 | Knob-top Valve |
|
- | |||||
| 40 | 318005301 | Panel-manifold,black |
|
- | |||||
| 42 | 318169401 | Trim |
|
- | |||||
| 49 | 318030811 | Backsplash Panel |
|
- | |||||
| 50 | 318146602 | Bezel-nameplate,black |
|
$ 5.40 | |||||
| 51 | 316071300 | Insert-nameplate |
|
- | |||||
| *97880 | 5303311532 | Screw,6-32 X 1/4 |
|
- |
