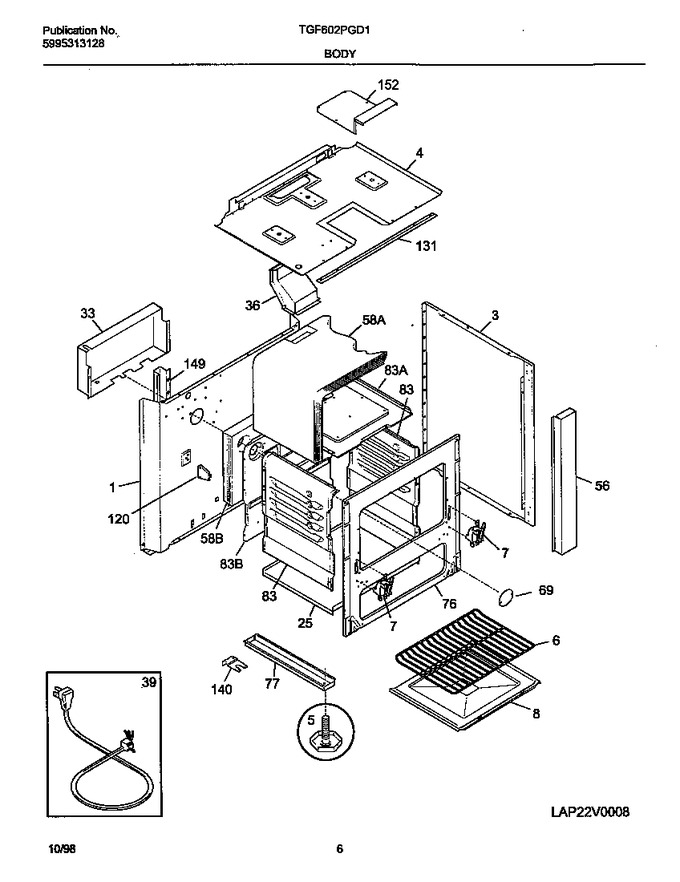

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318076300		Back-main		Appelez-nous	-
3	5308014019		Panel-bodyside		Appelez-nous	-
4	318133505		Burner Box		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175500)			Immediately	$ 24.26
6	5303311539		Rack,oven		Appelez-nous	-
7	3205894		Hinge-oven Door, Rh				$ 55.91
7	3205895		Hinge-oven Door, Lh		Appelez-nous	-
8	5303286741		Panel-oven Bottom		Appelez-nous	-
25	318121700		Panel-oven Bottom		Appelez-nous	-
33	318114301		Shield-rear Wall		Appelez-nous	-
36	318089700		Flue		Appelez-nous	-
39	5303308453		Cord,electric Power		Appelez-nous	-
56	08013994		Trim-bodyside		Appelez-nous	-
58	3017172		Insulation, Oven Back		Appelez-nous	-
58	3017171		Insulation, Oven Wrapper		Appelez-nous	-
69	318036400		Cover Hole-oven Light		Appelez-nous	-
76	318133900		Front Frame-oven		Appelez-nous	-
77	5303286692		Support,rail		Appelez-nous	-
83	318134200		Liner-oven, Lh		Appelez-nous	-
83	318134800		Liner-oven, Back		Appelez-nous	-
83	318134600		Liner,oven ,bottom		Appelez-nous	-
83	318134300		Liner,oven ,rh		Appelez-nous	-
120	3051096		Support,oven Rear		Appelez-nous	-
131	318163000		Support-control Pnl		Appelez-nous	-
140	3131041		Support Anti-tip		Appelez-nous	-
149	3131046		Channel,wiring		Appelez-nous	-
152	318135703		Cover-door Lock		Appelez-nous	-
*97888	3051063		Grommet,bodyside		Appelez-nous	-
*97889	3131791		Clip,bodyside				$ 19.01
*97890	3934063		Anti-tip Kit		Appelez-nous	-
*97891	5303131053		Shield-bodyside,rh		Appelez-nous	-
*97892	5303131054		Shield,bodyside ,lh		Appelez-nous	-
*97893	5303311537		Grommet-main Top		Appelez-nous	-
*97894	5308008028		Spring-oven Door		Appelez-nous	-
*97895	3201899		Washer,hinge Assy		Appelez-nous	-
*97896	3131038		Support-oven Bottom		Appelez-nous	-
*97897	5303299689		Wire-tie		Appelez-nous	-
*97898	5303210255		Rail,base ,rh		Appelez-nous	-
*97899	5303210256		Rail-base, Lh		Appelez-nous	-
*97900	5303324119		Liner-oven, Top		Appelez-nous	-
*97901	5303284616		Clip-thermal Bulb				$ 9.86
*97902	316042301		Plate-observation		Appelez-nous	-
*97903	08008037		Bolt, Shoulder		Appelez-nous	-
*97904	5303131801		Screw, 10 X 3/8		Appelez-nous	-
*97905	5303308449		Fastener		Appelez-nous	-
*97906	5303323146		Rivet		Appelez-nous	-
