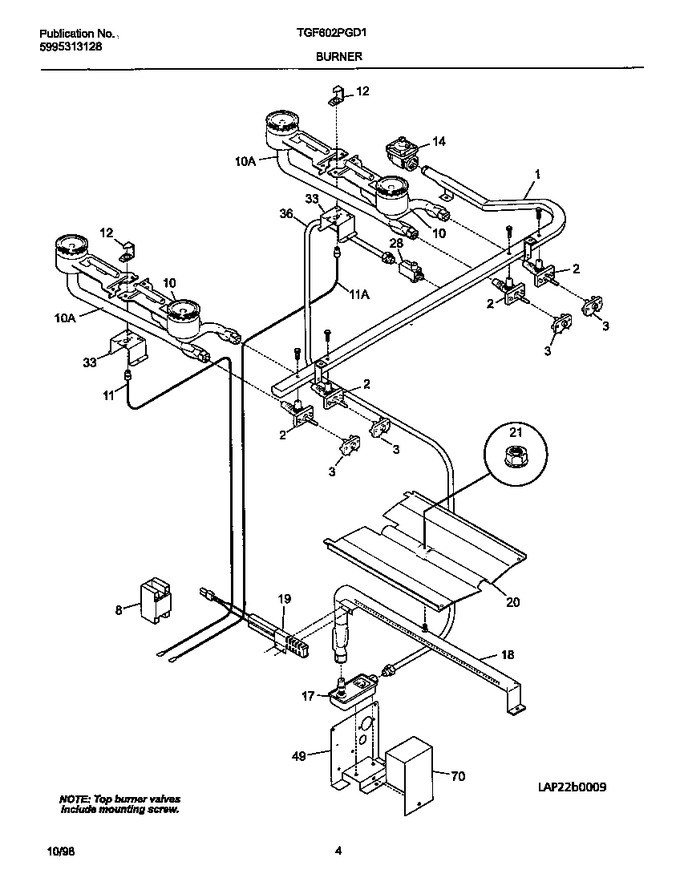

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318078003		Manifold Pipe		Appelez-nous	-
2	318087100		Valve-top Burner		Appelez-nous	-
3	316032000		Switch,ignitor ,(4)				$ 58.70
8	5303912606		Spark Module				$ 134.67
10	5303311551		Burner Assy-top,front		Appelez-nous	-
10	5303131079		Burner Assy-top,rear				$ 129.78
11	318083200		Ignitor-top Burner,front		Appelez-nous	-
11	3203968		Ignitor-top Burner, Base		Appelez-nous	-
12	5303311554		Retainer,ignitor		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
17	318087200		Valve-safety		Appelez-nous	-
18	5303202752		Burner-oven				$ 26.83
19	5303935066		Ignitor-oven   (Replaces: 316030600)			Immediately	$ 59.58
20	3203676		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut   (Replaces: 3201885)				$ 0.41
28	5303131099		Valve-shut Off		Appelez-nous	-
33	5303210471		Bracket-burner Mtg		Appelez-nous	-
36	5303323849		Tube		Appelez-nous	-
49	3131069		Bracket,safety Valve		Appelez-nous	-
70	3131088		Cover,safety Valve		Appelez-nous	-
*97881	5303323141		Screw-top Valve Mtg,hex Washer Head ,1/4-20 X 0.31,w/gas		Appelez-nous	-
*97882	5303311549		Screw-burner Mtg		Appelez-nous	-
*97883	5303286686		Nut,support Ovn Vlv		Appelez-nous	-
*97884	131202300		Screw, 8 X 5/8, Spark Module   (Replaces: 3131048)			Immediately	$ 13.46
*97885	08008009		Bushing,snap		Appelez-nous	-
*97886	08008051		Bushing - Nylon Snap		Appelez-nous	-
*97887	5303308450		Screw, 8 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
