SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

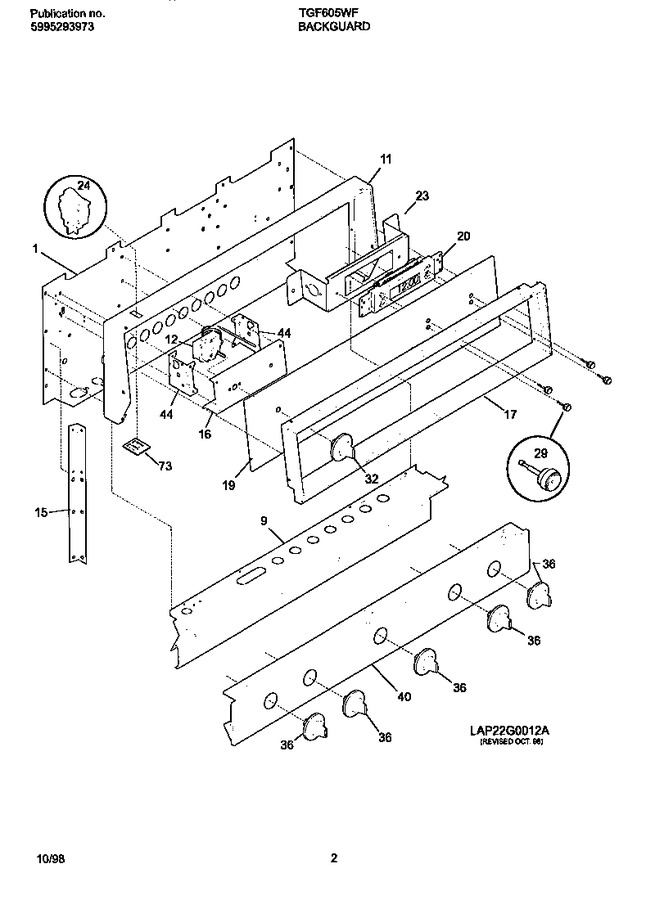

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318022401		Shield,backguard ,rear Wall		Appelez-nous	-
9	316030102		Trim-vent		Appelez-nous	-
11	5303317082		Trim,control Panel		Appelez-nous	-
12	318059000		Thermostat-oven		Appelez-nous	-
15	5308013296		Support,backguard ,(2)		Appelez-nous	-
16	5303210475		Plate, Instrument Mtg		Appelez-nous	-
17	5308013930		Trim-control Panel		Appelez-nous	-
19	318001005		Panel-control, Glass, Black		Appelez-nous	-
20	318012300		Clock/timer		Appelez-nous	-
23	318015310		Bracket-clock Mtg		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
29	5303311122		Button-clock		Appelez-nous	-
32	318016816		Knob,thermostat		Appelez-nous	-
36	318016208		Knob-control, (5)		Appelez-nous	-
40	318005300		Panel-manifold		Appelez-nous	-
44	5303286745		Bracket, Plate Inst. Mtg, (2)		Appelez-nous	-
73	318141200		Support,switch		Appelez-nous	-
*61880	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
*61881	08008009		Bushing,snap		Appelez-nous	-
*61882	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*61883	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*61884	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*61885	5303311532		Screw, Back		Appelez-nous	-
