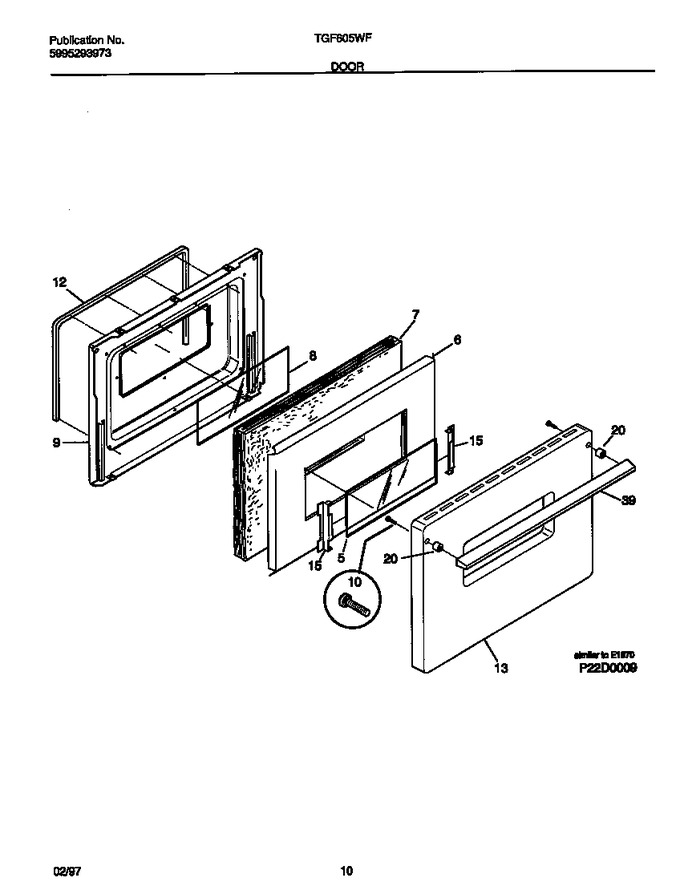

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303317084		Glass-oven Door, Inner		Appelez-nous	-
6	5308012609		Shield-insulation		Appelez-nous	-
7	5303018345		Insulation, Oven Door		Appelez-nous	-
8	5303316988		Glass-oven Door, Inner		Appelez-nous	-
9	318113000		Liner,oven Door		Appelez-nous	-
10	5303317085		Screw-handle		Appelez-nous	-
12	5308008022		Seal,oven Door				$ 124.89
13	5303014982		Panel-oven Door, Almond		Appelez-nous	-
15	08007938		Bracket,glass Mtg		Appelez-nous	-
20	5303310504		Spacer-handle, (2)		Appelez-nous	-
39	5303304012		Handle-door, Oven		Appelez-nous	-
*61903	3051050		Screw-shoulder				$ 12.29
*61904	5303300414		Spacer, Cork & Rubber				$ 13.18
