SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

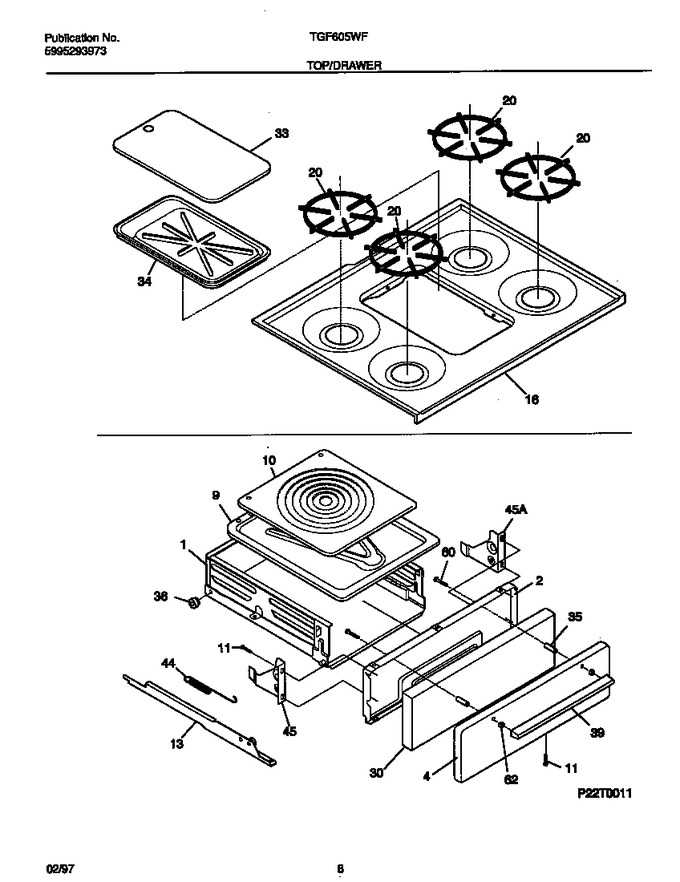

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107000		Drawer,broiler		Appelez-nous	-
2	318135100		Liner,broiler Door		Appelez-nous	-
4	5303281362		Panel-drawer		Appelez-nous	-
9	318126200		Pan-broiler		Appelez-nous	-
10	318126300		Insert-broiler Pan		Appelez-nous	-
11	5303131801		Screw, 10 X 3/8		Appelez-nous	-
16	08014035		Main Top, Almond		Appelez-nous	-
20	5303272274		Grate, (4)		Appelez-nous	-
30	3017184		Insulation, Broiler Drawer		Appelez-nous	-
33	9067		Cover-griddle, Almond		Appelez-nous	-
34	318102600		Griddle				$ 188.24
35	5303310504		Spacer-handle, (2)		Appelez-nous	-
36	530395079		Roller		Appelez-nous	-
39	5308008085		Handle,drawer		Appelez-nous	-
44	5303131030		Spring-broiler		Appelez-nous	-
45	5303308471		Hinge-broiler, Lh		Appelez-nous	-
45	5303308472		Hinge-broiler, Rh		Appelez-nous	-
60	5303310510		Screw-handle Mtg				$ 14.18
62	154079601		Nut   (Replaces: 3201885)				$ 0.41
*61900	3051050		Screw-shoulder				$ 12.29
*61901	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*61902	5303300414		Spacer, Cork & Rubber				$ 13.18
13A	5303051056		Channel-drawer, Lha				$ 78.44
13B	5303051055		Channel-drawer, Rh (not Illustrated)				$ 56.60

    View Diagram in Separate Window       Print Part List
